CSS Art: Drawing a Coffee Stain

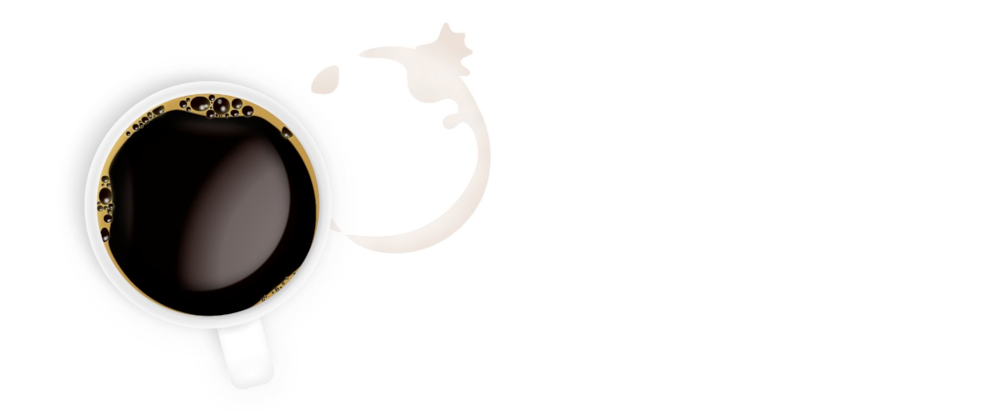

A few weeks ago, I did some CSS Art. This time it was a cup of coffee with a coffee ring stain next to it. All in HTML and CSS –and not as many elements as you'd think... if we don't count the bubbles.

I tried to make it realistic but it was too cartoony/digital. However, I still like how it turned out. Check out the demo and live source code on CodePen:

Now the question is...

How was it done?

I started breaking the drawing into smaller parts (let's apply a "divide-and-conquer" strategy even for illustration): the stain on one side and the coffee mug/cup on the other. Then I repeated the process.

The stain

The stain is also divided into a broken ring and a splash. In this other tutorial, I explain how CSS creates the splash effect. Both ring and splash use the filter needed to get that effect, so I applied it to the parent.

The splash is the same as in the tutorial. For the ring, I applied different box shadows to form a crescent moon shape that then gets blurry with the filter:

filter: blur(1.5vmin) contrast(500);
Enter fullscreen mode Exit fullscreen mode

Finally, to add realism, I made it so the stains weren't the same color everywhere. For example, if you look at pictures of coffee stains, they usually have edges darker than the inside. While I couldn't achieve that, I was able to add different color shades by applying multiple masks:

-webkit-mask:
    radial-gradient(farthest-side at 25% 40%, #000 20%, #0000 45%),
    radial-gradient(#0004, #0000) 10% 25% / 17% 21%,
    radial-gradient(#0006, #0000) 30% 30% / 20% 20%,
    radial-gradient(#000c, #0000),
    radial-gradient(farthest-side, #0000 80%, #000);
Enter fullscreen mode Exit fullscreen mode

We must be careful with the masks because they accumulate, and we may end up with everything in the same color tone. Also, notice how I used the vendor prefix version -webkit-mask because the property mask is still not fully supported, but the prefixed one is.

The mug

The coffee cup is more straightforward than it looks: one element to draw the handle, another to do the cup in itself, and a couple more for the coffee and the foam. Then as many bubbles as you want to add. The more, the merrier.

The cup is a circle (border-radius: 50%) and then I use multiple shadows. While having one shadow and being done with it may be tempting, there are numerous points of light (sunlight from a window, light from a lamp, reflections...). Having a single point of light (and a single shadow) takes realism from the drawing.

.coffee-cup {
  /* three shadows with different opacities and sizes */
  box-shadow:
    -3.5vmin -2vmin 2vmin -1vmin #0001,
    -0.5vmin -0.5vmin 2vmin #0002,
    0 0 5vmin #0001;
}
Enter fullscreen mode Exit fullscreen mode

The handle was tricky because I had to position it in a way that looked natural. I don't think it's 100% right, but it seems close enough. One-degree rotation difference may look fake (or more fake).

I used the same technique for the foam base as with the stain. This allowed for an asymmetric shape resembling a continuous blob on top of the coffee.

Finally, I decorated it with bubbles-many of them. The bubbles are mostly circular, have a coffee color, and have a light border, and I also included a little bit of light reflection to make them look more realistic. I probably should have included more, but as a manual process, it was tedious, and more didn't imply a better result.

Conclusion

I hope you enjoyed this article and learned something new about CSS and its properties (or about drawing, too). If you have any questions, please comment, and I'll happily answer. Also, if you want to check other CSS Art I have done, visit my website or CodePen profile.
