鸿蒙Next开发实战案例--简易画板

友友们，一别几天，甚是想念。今天继续和大家分享鸿蒙开发实战案例。

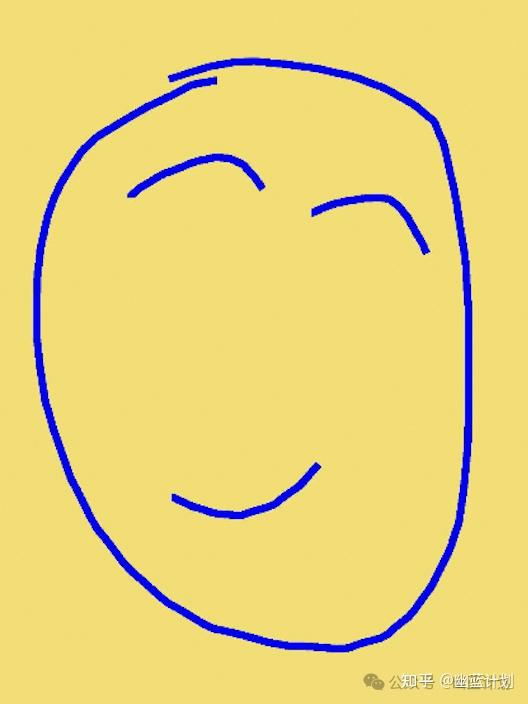

今天要做的是一个简易画板，先看效果图。

Image description

首先添加一个画板组件，并添加一个touch方法：

Canvas(this.context)

          .width('100%')

          .height('100%')

          .backgroundColor('#F5DC62')

          .onTouch((event)=>{



          })
Enter fullscreen mode Exit fullscreen mode

然后创建一个CanvasRenderingContext2D对象和path2d对象：

private settings: RenderingContextSettings = new RenderingContextSettings(true);

private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings);

private path2Db: Path2D = new Path2D()
Enter fullscreen mode Exit fullscreen mode

接下来定义两个坐标用来记录手指滑过的痕迹：

private pointX1:number

 private pointY1:number

 private pointX2:number

 private pointY2:number
Enter fullscreen mode Exit fullscreen mode

然后我们要做的是记录下光标或手指移动的轨迹并进行绘制。在手指刚按下屏幕时，给path2d对象一个起点：

if (event.type === TouchType.Down) {

              this.path2Db.moveTo(event.touches[0].x, event.touches[0].y);

              this.pointX1 = pointX

              this.pointY1 = pointY

              this.pointX2 = pointX

              this.pointY2 = pointY

            }
Enter fullscreen mode Exit fullscreen mode

当手指移动时，使用贝塞尔曲线在两点之间绘制出圆滑的曲线：

if (event.type === TouchType.Move) {

              let curX = (pointX + this.pointX1)/2

              let curY = (pointY + this.pointY1)/2
              this.path2Db.bezierCurveTo(this.pointX1,this.pointY1,this.pointX2,this.pointY2,curX,curY)
              this.context.stroke(this.path2Db)

            }
Enter fullscreen mode Exit fullscreen mode

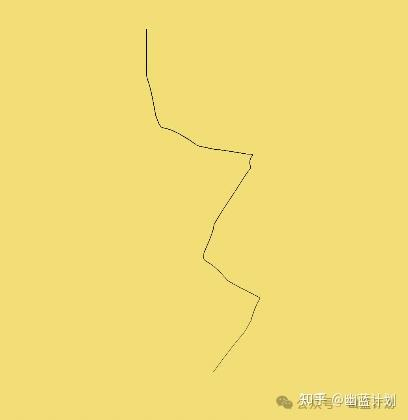

看下效果：

Image description

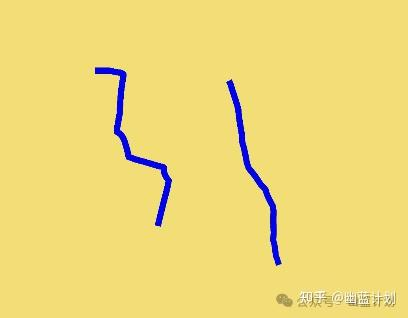

你还可以设置画笔的粗细和颜色：

//画笔粗细

this.context.lineWidth = 5

//画笔颜色

this.context.strokeStyle = '#0000ff'
Enter fullscreen mode Exit fullscreen mode

Image description
