Set up a CD workflow for NodeJS to AWS Lambda using GitHub Actions

What We'll Be Doing

In this article we'll be automating the deployment process of your code with AWS Lambda using NodeJS using CD with GitHub Actions.

You can scroll down all the way to the bottom to see the final code if you want

What is Continuous Deployment(CD)?

This Article does a great job of explaining it.

Continuous Deployment (CD) is a software release process that uses automated testing to validate if changes to a codebase are correct and stable for immediate autonomous deployment to a production environment.

There are many softwares you can use to set up Continuous Deployment such as Jenkins, Travis CI, and CircleCI. But the one we're using is GitHub Actions

What is GitHub Actions?

For more information about GitHub Actions checkout this article

Automate, customize, and execute your software development workflows right in your repository with GitHub Actions. You can discover, create, and share actions to perform any job you'd like, including CI/CD, and combine actions in a completely customized workflow.

Getting Started

To deploy code you would have to use the Serverless CLI
We'll be automating this process using GitHub Actions.

We'll be creating an app.js file, you can change it to however you like.

First we'll be using Express for our web framework. This is optional but we'll also be using dotenv and setting up environment variables. You will need it if you want to use confidential data such as API Keys, DB credentials, etc.

This is an example of what I did in app.js:

const express = require('express');
const app = express();
require('dotenv').config();

app.get('/', (req, res) => {
  res.send('hello world');
})

app.get('/secret', (req, res) => {
  res.send(process.env.API_KEY)
})

app.listen(process.env.PORT || 3000);
Enter fullscreen mode Exit fullscreen mode

Setting up GH Actions

Setting up GitHub Actions is quite simple first a folder named .github, inside that create a workflows folder and inside that folder create a yaml file with any name of your choice, we're doing deploy.yaml. It should look something like this:

.github/workflows/deploy.yaml

Good job! You've set up a GitHub Actions workflow! You can view it under the Actions tab for your Github repository.

Setting up Serverless

First install the Serverless CLI:

npm install -g serverless

Then run:

serverless create -t aws-nodejs

This will create 2 files, handler.js, and serverless.yaml. You can delete the handler.js file as its just a demo and remove just about everything in the serverless.yaml. But leave these code:

service: Article_Test
frameworkVersion: '2'

provider:
  name: aws
  runtime: nodejs12.x

functions:
  hello:
    handler: handler.hello
Enter fullscreen mode Exit fullscreen mode

Right now it won't work with express, to solve this we're going to be using serverless-http.
Make these changes in your app.js file:

const express = require('express');
const app = express();
const serverless = require('serverless-http');
require('dotenv').config();

app.get('/', (req, res) => {
  res.send('hello world');
})

app.get('/secret', (req, res) => {
  res.send(process.env.API_KEY)
})

module.exports.handler = serverless(app)

app.listen(process.env.PORT || 3000);
Enter fullscreen mode Exit fullscreen mode

Notice we made the module.exports.handler = serverless(app)
That part is important because in the serverless.yaml we need to make these changes:

service: Article-Test
frameworkVersion: '2'

provider:
  name: aws
  runtime: nodejs12.x

functions:
  app:
    handler: app.handler
    events:
      - http: ANY /
      - http: 'ANY {proxy+}'
Enter fullscreen mode Exit fullscreen mode

Notice the: handler: app.handler. We exported that in the app.js and it is looking for any exported function named handler in the app.js file. Which we did here: module.exports.handler = serverless(app). If you don't get the name of the file or function exported right it will cause an error.

Reminder: API Gateway won't know any of express' routes defined

This is the final part before getting serverless do deploy and that's setting up your AWS credentials. Get your AWS key and secret by going into the AWS Console. Under Profile > My Security Credentials. You can create a new key. Set the credentials with the serverless CLI using this command:

serverless config credentials --provider aws --key AKIAIOSFODNN7EXAMPLE --secret wJalrXUtnFEMI/K7MDENG/bPxRfiCYEXAMPLEKEY

Reminder: If you are using AWS educate find your credentials on Vocareum and click on 'Account Details'. Then copy and paste your credentials into the ~/.aws/credentials file.

Obviously put your credentials. You can view it under the file ~/.aws/credentials
It should look something like this:

aws_access_key_id=AKIAIOSFODNN7EXAMPLE
aws_secret_access_key=wJalrXUtnFEMI/K7MDENG/bPxRfiCYEXAMPLEKY

Great! We're almost done setting up serverless! Now run the command:
serverless deploy

Your output should look something like this:

Serverless: Stack update finished...
Service Information
service: Article-Test
stage: dev
region: us-east-1
stack: Article-Test-dev
resources: 12
api keys:
  None
endpoints:
  ANY - https://ob74bjk993.execute-api.us-east-1.amazonaws.com/dev
  ANY - https://ob74bjk993.execute-api.us-east-1.amazonaws.com/dev/{proxy+}
functions:
  app: Article-Test-dev-app
layers:
  None

***********************************************************************************************************************
Serverless: Announcing an enhanced experience for running Express.js apps: https://github.com/serverless-components/express.
Enter fullscreen mode Exit fullscreen mode

This is your where you can find your API endpoint:

endpoints:
  ANY - https://ob74bjk993.execute-api.us-east-1.amazonaws.com/dev
Enter fullscreen mode Exit fullscreen mode

Automate Using GitHub Actions

Finally, let's get back to the deploy.yaml file.
First up let's set up the trigger on what event should this workflow be running on.

on:
  push:
    tags:
    - 'v*.*.*'
Enter fullscreen mode Exit fullscreen mode

This will run on any pushes with a tag that begins with a v for example v1.0.0.

The next step is what we're doing on this event.
First off add this:

jobs:
  serverless-deploy-production:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v2
      - uses: actions/setup-node@v1
        with:
          node-version: 12
Enter fullscreen mode Exit fullscreen mode

This will run any commands we did on an Ubuntu VM. This part:

    steps:
      - uses: actions/checkout@v2
      - uses: actions/setup-node@v1
        with:
          node-version: 12
Enter fullscreen mode Exit fullscreen mode

This will get your source code into the machine and will set up NodeJS.

The next part is this:

      - name: Install serverless CLI
        run: npm install -g serverless
      - name: Install npm dependencies
        run: npm install
Enter fullscreen mode Exit fullscreen mode

This will install the serverless cli on the VM and install npm dependencies

The next part is optional, if you don't need environment variables then you can skip this.

 - name: set environment variables
        run: |
          touch .env
          echo "API_KEY=${{secrets.API_KEY}}" >> .env
Enter fullscreen mode Exit fullscreen mode

GitHub Actions will create a .env file and will redirect the output to the .env file

This will get your secrets from your GitHub repo. To set GitHub secrets:

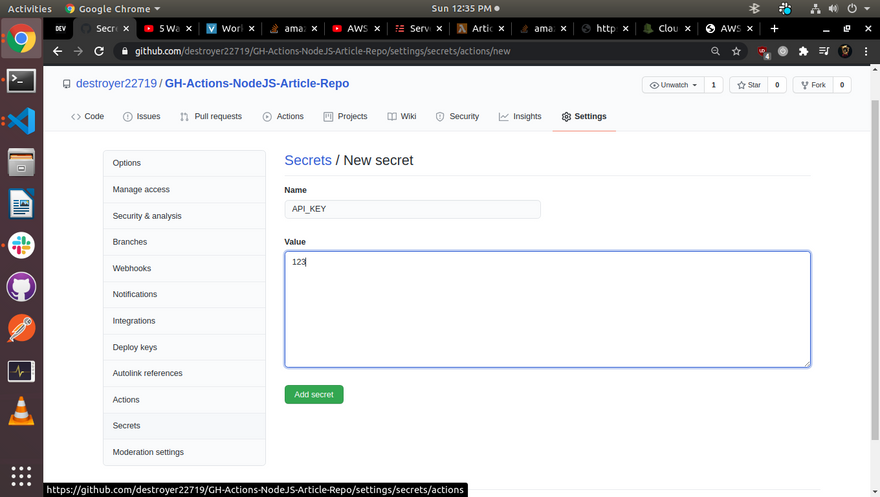

Setting up secrets with GitHub
That is where the values of your environment variables are going to come from.

This is the final parts:

      - name: deploy
        run: |
          serverless config credentials --provider aws --key ${{secrets.AWS_ACCESS_KEY}} --secret ${{secrets.AWS_SECRET_ACCESS_KEY}}
          serverless deploy --stage production
Enter fullscreen mode Exit fullscreen mode

Note: If you're an IAM user and you have a session token setting up the credentials using serverless config won't allow you to configure a session storage. To solve this use the following code I provided at the end

This will set up the credentials for us so we don't need to install the serverless CLI and set credentials ever again.

I also added --stage production for production flag but you can remove that if you want.

Your app.js should look something like this:

const express = require('express');
const app = express();
const serverless = require('serverless-http');
require('dotenv').config();

app.get('/', (req, res) => {
  res.send('hello world');
})

app.get('/secret', (req, res) => {
  res.send(process.env.API_KEY)
})

module.exports.handler = serverless(app)

app.listen(process.env.PORT || 3000);
Enter fullscreen mode Exit fullscreen mode

Your serverless.yaml file should look like this:

service: Article-Test
frameworkVersion: '2'

provider:
  name: aws
  runtime: nodejs12.x

functions:
  app:
    handler: app.handler
    events:
      - http: ANY /
      - http: 'ANY {proxy+}'
Enter fullscreen mode Exit fullscreen mode

Your deploy.yaml should look something like this:

on:
  push:
    tags:
    - 'v*.*.*'
jobs:
  serverless-deploy-production:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v2
      - uses: actions/setup-node@v1
        with:
          node-version: 12
      - name: Install serverless CLI
        run: npm install -g serverless
      - name: Install npm dependencies
        run: npm install
      - name: set environment variables
        run: |
          touch .env
          echo "API_KEY=${{secrets.API_KEY}}" >> .env
      - name: deploy
        run: |
          serverless config credentials --provider aws --key ${{secrets.AWS_ACCESS_KEY_ID}} --secret ${{secrets.AWS_SECRET_ACCESS_KEY}}
          serverless deploy --stage production
Enter fullscreen mode Exit fullscreen mode

If you are a user with session token then your file should look something like this:

on:
  push:
    tags:
    - 'v*.*.*'
jobs:
  serverless-deploy-production:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v2
      - uses: actions/setup-node@v1
        with:
          node-version: 12
      - name: Install serverless CLI
        run: npm install -g serverless
      - name: Install npm dependencies
        run: npm install
      - name: set environment variables
        run: |
          touch .env
          echo "API_KEY=${{secrets.API_KEY}}" >> .env
      - name: Configure AWS credentials for account with session token
        uses: aws-actions/configure-aws-credentials@v1
        with:
          aws-access-key-id: ${{ secrets.AWS_ACCESS_KEY_ID}}
          aws-secret-access-key: ${{ secrets.AWS_SECRET_ACCESS_KEY }}
          aws-session-token: ${{secrets.AWS_SESSION_TOKEN}}
          aws-region: us-east-1
      - name: deploy
        run: serverless deploy --stage production
Enter fullscreen mode Exit fullscreen mode

Of course please configure your AWS credentials.

To see it in action use the following commands:

git tag v1.0.0
git push origin v1.0.0

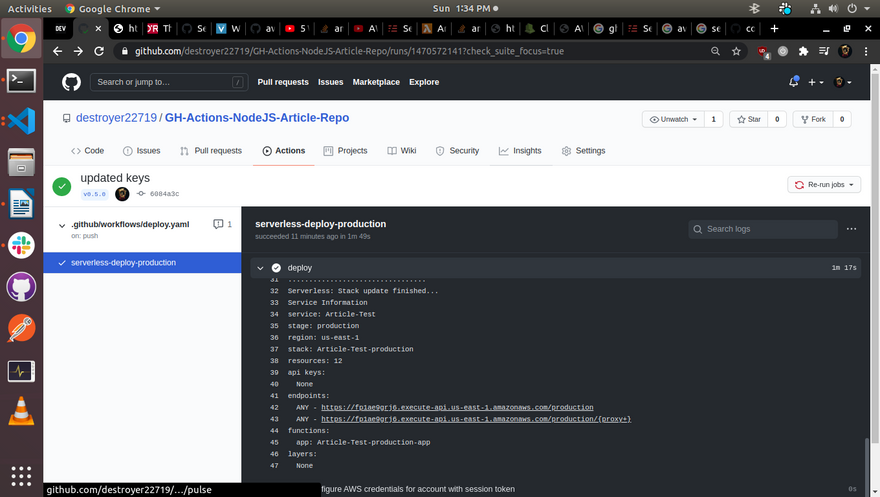

Once successful it should look something like this:
Alt Text

You can check out my repository here:
https://github.com/destroyer22719/GH-Actions-NodeJS-Article-Repo

Note: If you try to connect to the URL and you see {
"message": "Missing Authentication Token"
}
, don't worry, check out this article to solve this issue.

Conclusion

Congratulations! You've (hopefully) successfully deployed your code to the cloud with Continuous Deployment!

I was the one who deployed the code to the cloud and set up the CD workflow in my work and it was a really amazing (and frustrating) learning experience for me. I made this article to guide you to CD with AWS Lambda.

Thanks for reading my first post and happy coding!
