Adding the map TomTom component to an Angular application

#angular #map #webdev #tutorial

Introduction

Angular is a development platform for building WEB, mobile and desktop applications using HTML, CSS and TypeScript (JavaScript). Currently, Angular is at version 14 and Google is the main maintainer of the project.

@tomtom-international/web-sdk-maps is a library that hides the complexity of integration with TomTom services, boosting the productivity with fully styleable and easily customized components.

Prerequisites

Before you start, you need to install and configure the tools:

Getting started

Create and configure the account on the TomTom

1. Let's create the account. Access the site https://www.tomtom.com/, click on the menu Developers and click on the submenu Developer portal.

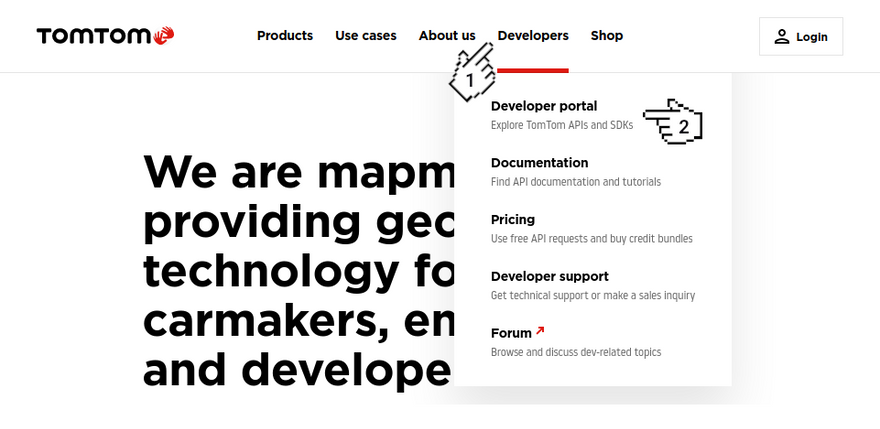

TomTom - Home page

2. Click on the button REGISTER.

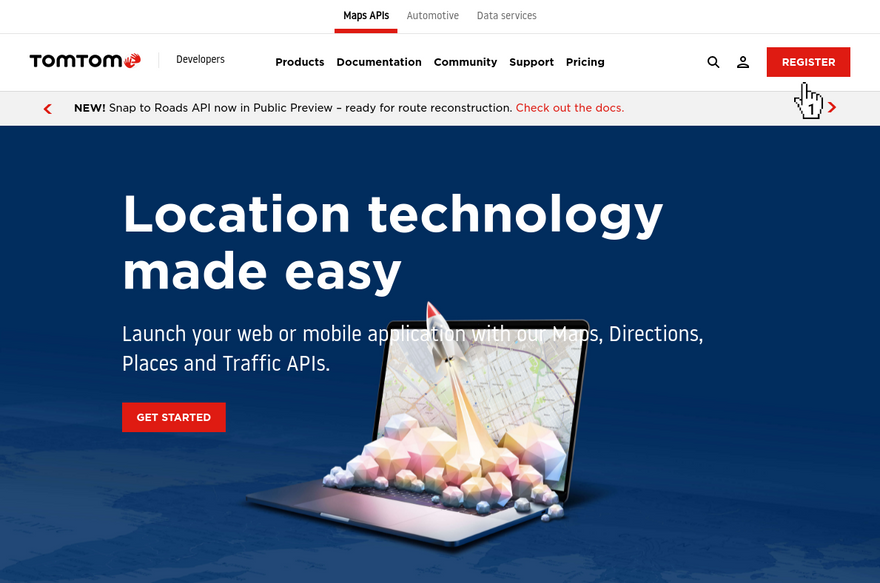

TomTom - Developer portal

3. Fill in the fields Full name, Username, Email, Password, click on the checkbox I have read and agreed with the terms and conditions for using Maps APIs. and click on the button REGISTER.

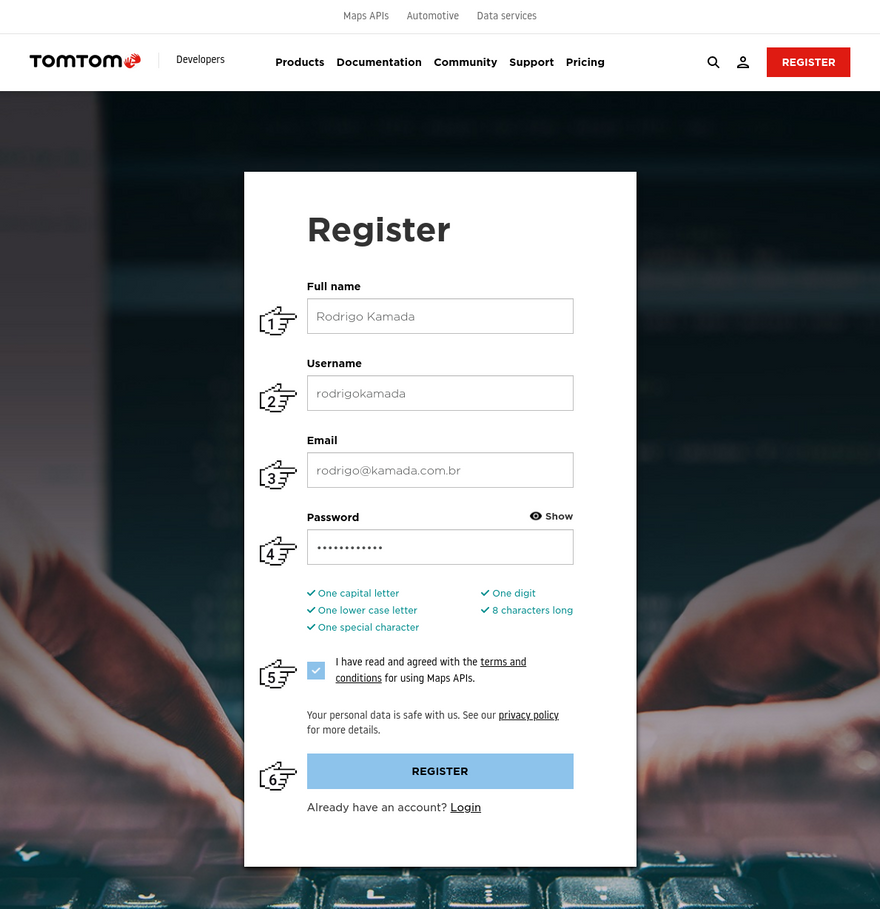

TomTom - Register

4. Check the registered email.

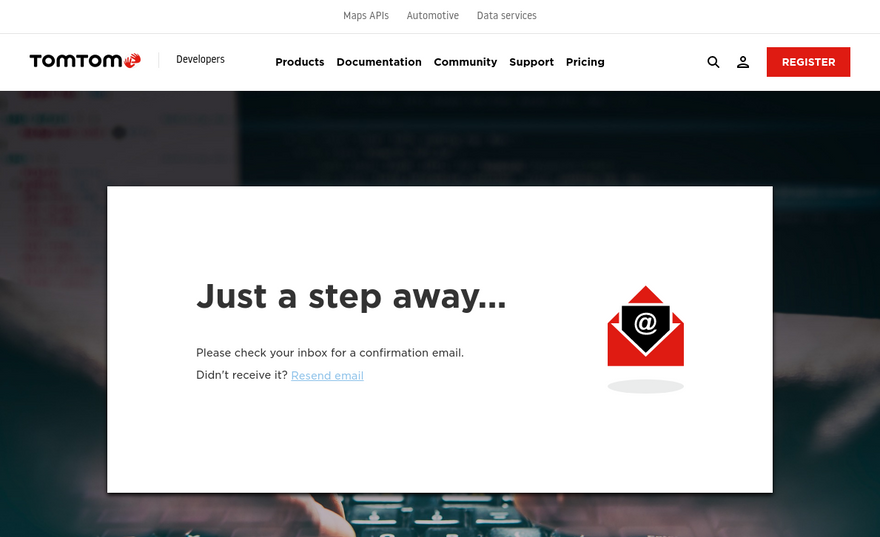

TomTom - Check email

5. Click on the button ACTIVATE ACCOUNT in the email sent.

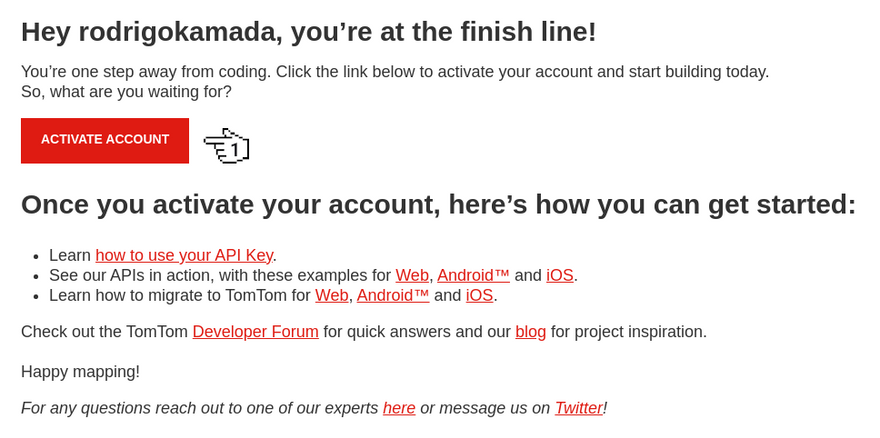

TomTom - Activate account

6. Click on the link MY DASHBOARD.

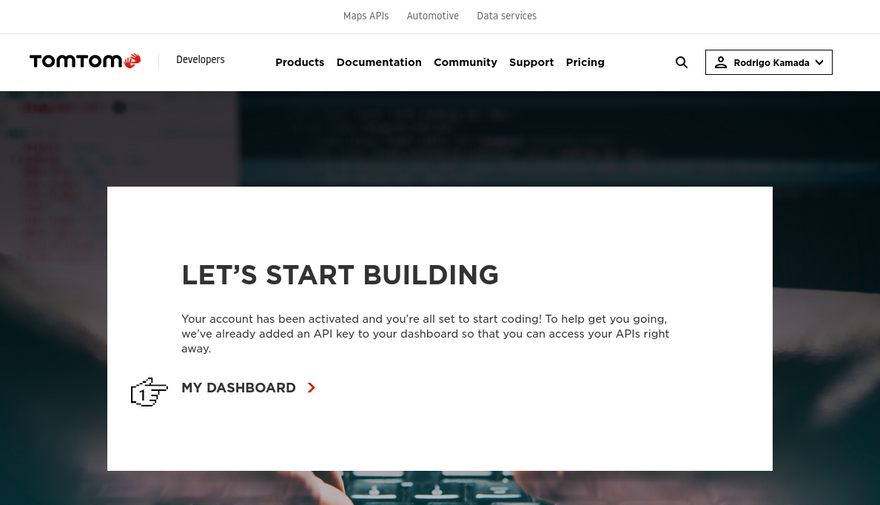

TomTom - Let's start building

7. Copy the key displayed in the Keys menu and, in my case, the key POQwSkANG2wVgN1qMbook38s5EMkN7pG was displayed because this key will be configured in the Angular application.

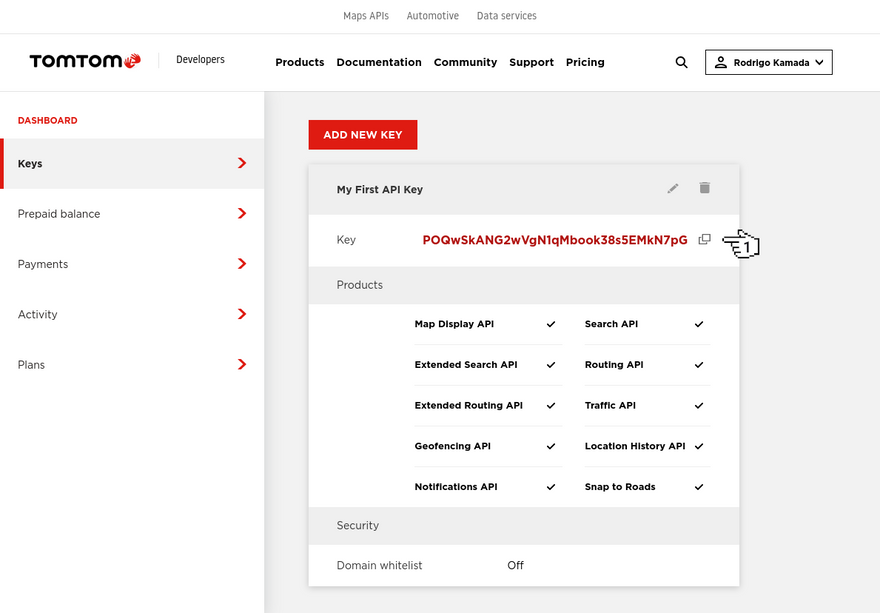

TomTom - Keys

8. Ready! Account created and key generated.

Create the Angular application

1. Let's create the application with the Angular base structure using the @angular/cli with the route file and the SCSS style format.

ng new angular-tomtom --routing true --style scss
CREATE angular-tomtom/README.md (1059 bytes)
CREATE angular-tomtom/.editorconfig (274 bytes)
CREATE angular-tomtom/.gitignore (620 bytes)
CREATE angular-tomtom/angular.json (3255 bytes)
CREATE angular-tomtom/package.json (1078 bytes)
CREATE angular-tomtom/tsconfig.json (863 bytes)
CREATE angular-tomtom/.browserslistrc (600 bytes)
CREATE angular-tomtom/karma.conf.js (1431 bytes)
CREATE angular-tomtom/tsconfig.app.json (287 bytes)
CREATE angular-tomtom/tsconfig.spec.json (333 bytes)
CREATE angular-tomtom/.vscode/extensions.json (130 bytes)
CREATE angular-tomtom/.vscode/launch.json (474 bytes)
CREATE angular-tomtom/.vscode/tasks.json (938 bytes)
CREATE angular-tomtom/src/favicon.ico (948 bytes)
CREATE angular-tomtom/src/index.html (299 bytes)
CREATE angular-tomtom/src/main.ts (372 bytes)
CREATE angular-tomtom/src/polyfills.ts (2338 bytes)
CREATE angular-tomtom/src/styles.scss (80 bytes)
CREATE angular-tomtom/src/test.ts (745 bytes)
CREATE angular-tomtom/src/assets/.gitkeep (0 bytes)
CREATE angular-tomtom/src/environments/environment.prod.ts (51 bytes)
CREATE angular-tomtom/src/environments/environment.ts (658 bytes)
CREATE angular-tomtom/src/app/app-routing.module.ts (245 bytes)
CREATE angular-tomtom/src/app/app.module.ts (393 bytes)
CREATE angular-tomtom/src/app/app.component.scss (0 bytes)
CREATE angular-tomtom/src/app/app.component.html (23364 bytes)
CREATE angular-tomtom/src/app/app.component.spec.ts (1097 bytes)
CREATE angular-tomtom/src/app/app.component.ts (219 bytes)
✔ Packages installed successfully.
    Successfully initialized git.
Enter fullscreen mode Exit fullscreen mode

2. Install and configure the Bootstrap CSS framework. Do steps 2 and 3 of the post Adding the Bootstrap CSS framework to an Angular application.

3. Configure the TomTom key in the src/environments/environment.ts and src/environments/environment.prod.ts files as below.

tomtom: {
  key: 'POQwSkANG2wVgN1qMbook38s5EMkN7pG',
},
Enter fullscreen mode Exit fullscreen mode

4. Install the @tomtom-international/web-sdk-maps library.

npm install @tomtom-international/web-sdk-maps
Enter fullscreen mode Exit fullscreen mode

5. Configure the @tomtom-international/web-sdk-maps library. Change the angular.json file and add the maps.css file as below.

"styles": [
  "node_modules/bootstrap/scss/bootstrap.scss",
  "node_modules/bootstrap-icons/font/bootstrap-icons.css",
  "node_modules/@tomtom-international/web-sdk-maps/dist/maps.css",
  "src/styles.scss"
],
Enter fullscreen mode Exit fullscreen mode

6. Remove the contents of the AppComponent class from the src/app/app.component.ts file. Create the getCurrentPosition and loadMap methods as below.

import { AfterViewInit, Component } from '@angular/core';
import { Observable, Subscriber } from 'rxjs';
import * as tt from '@tomtom-international/web-sdk-maps';

import { environment } from '../environments/environment';

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.scss'],
})
export class AppComponent implements AfterViewInit {

  map: any;

  constructor() {
  }

  public ngAfterViewInit(): void {
    this.loadMap();
  }

  private getCurrentPosition(): any {
    return new Observable((observer: Subscriber<any>) => {
      if (navigator.geolocation) {
        navigator.geolocation.getCurrentPosition((position: any) => {
          observer.next({
            latitude: position.coords.latitude,
            longitude: position.coords.longitude,
          });
          observer.complete();
        });
      } else {
        observer.error();
      }
    });
  }

  private loadMap(): void {
    this.map = tt.map({
      key: environment.tomtom.key,
      container: 'map',
    });

    this.map.addControl(new tt.FullscreenControl());
    this.map.addControl(new tt.NavigationControl());

    this.getCurrentPosition()
    .subscribe((position: any) => {
      this.map.flyTo({
        center: {
          lat: position.latitude,
          lng: position.longitude,
        },
        zoom: 13,
      });

      const popup = new tt.Popup({ anchor: 'bottom', offset: { bottom: [0, -40] } }).setHTML('Angular TomTom');

      var marker = new tt.Marker().setLngLat({
        lat: 37.7749,
        lng: -122.4194,
      }).addTo(this.map);
      marker.setPopup(popup).togglePopup();
    });
  }

}
Enter fullscreen mode Exit fullscreen mode

7. Remove the contents of the src/app/app.component.html file. Add the map div tag as below.

<div class="container-fluid py-3">
  <h1>Angular TomTom</h1>

  <div id="map" class="map"></div>
</div>
Enter fullscreen mode Exit fullscreen mode

8. Add the style in the src/app/app.component.scss file as below.

#map {
  height: 400px;
  width: 100%;
  max-width: 600px;
}
Enter fullscreen mode Exit fullscreen mode

9. Run the application with the command below.

npm start

> angular-tomtom@1.0.0 start
> ng serve

✔ Browser application bundle generation complete.

Initial Chunk Files   | Names         |  Raw Size
vendor.js             | vendor        |   3.66 MB |
styles.css, styles.js | styles        | 521.05 kB |
polyfills.js          | polyfills     | 339.20 kB |
scripts.js            | scripts       |  76.33 kB |
main.js               | main          |  10.36 kB |
runtime.js            | runtime       |   6.86 kB |

                      | Initial Total |   4.59 MB

Build at: 2021-12-12T17:33:13.265Z - Hash: e4a77c4fe28aa482 - Time: 4248ms

** Angular Live Development Server is listening on localhost:4200, open your browser on http://localhost:4200/ **


✔ Compiled successfully.
Enter fullscreen mode Exit fullscreen mode

Note:

  • If the error Module '"/node_modules/@types/geojson/index"' has no default export. Did you mean to use 'import { GeoJSON } from "/node_modules/@types/geojson/index"' instead? occurs, add the setting allowSyntheticDefaultImports in the tsconfig.json file as below.
{
  "compilerOptions": {
    "allowSyntheticDefaultImports": true
  }
}
Enter fullscreen mode Exit fullscreen mode

10. Ready! Access the URL http://localhost:4200/ and check if the application is working. See the application working on GitHub Pages and Stackblitz.

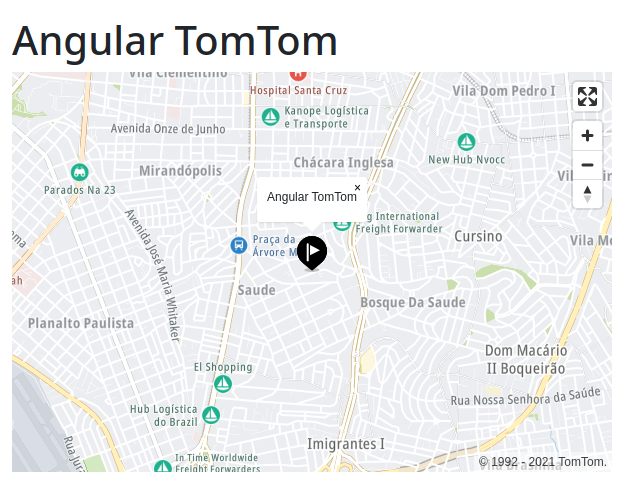

Angular TomTom

The application repository is available at https://github.com/rodrigokamada/angular-tomtom.

This tutorial was posted on my blog in portuguese.
