Creating a serverless API using AWS Lambda and Node.js with TypeScript and Express.js

Introduction

In this article, an application will be created using the Node.js with TypeScript and Express.js where a serverless API will be implemented and deployed on the AWS Lambda service.

Getting started

Create and configure the account on the AWS Lambda

AWS Lambda is a service that lets you run code for virtually any type of application without provisioning or managing servers or clusters.

1. Let's create and configure the account. Access the site https://aws.amazon.com/lambda/ and click on the button Get Started with AWS Lambda.

AWS Lambda - Home page

2. Now we will click on the option Root user, fill in the field Root user email address and click on the button Next.

AWS Lambda - Sign in

Note:

3. Next, we will fill in the field Password and click on the button Sign in.

AWS Lambda - Root user sign in

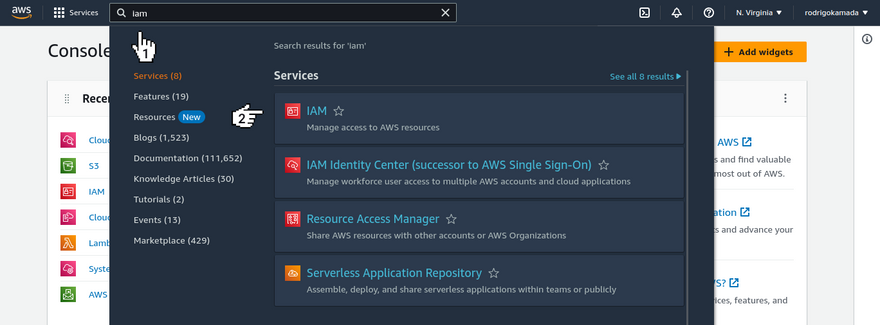

4. After access the account, we will type aim in the search field and click on the option AIM.

AWS Lambda - IAM service

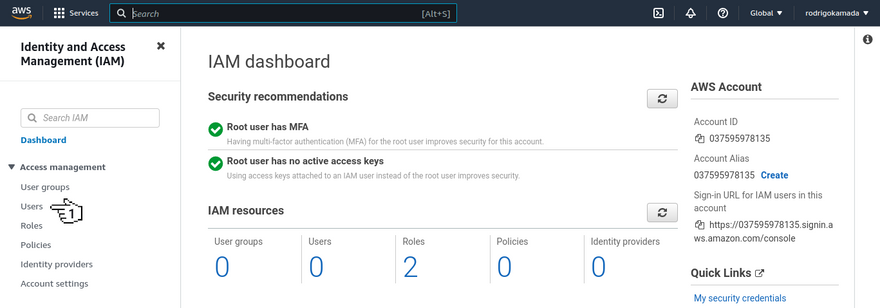

5. Now we will click on the menu Users.

AWS Lambda - IAM dashboard

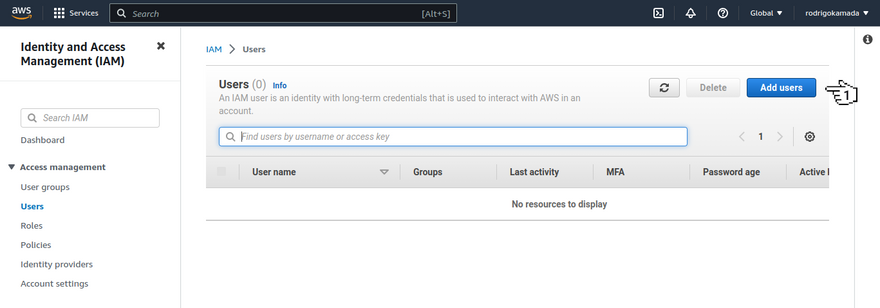

6. Next, we will click on the button Add users.

AWS Lambda - Users

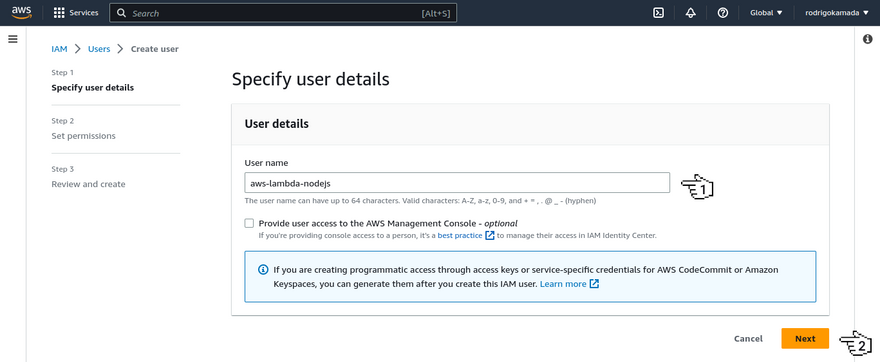

7. After access the screen for adding users, we will fill in the field User name and click on the button Next.

AWS Lambda - Specify user details

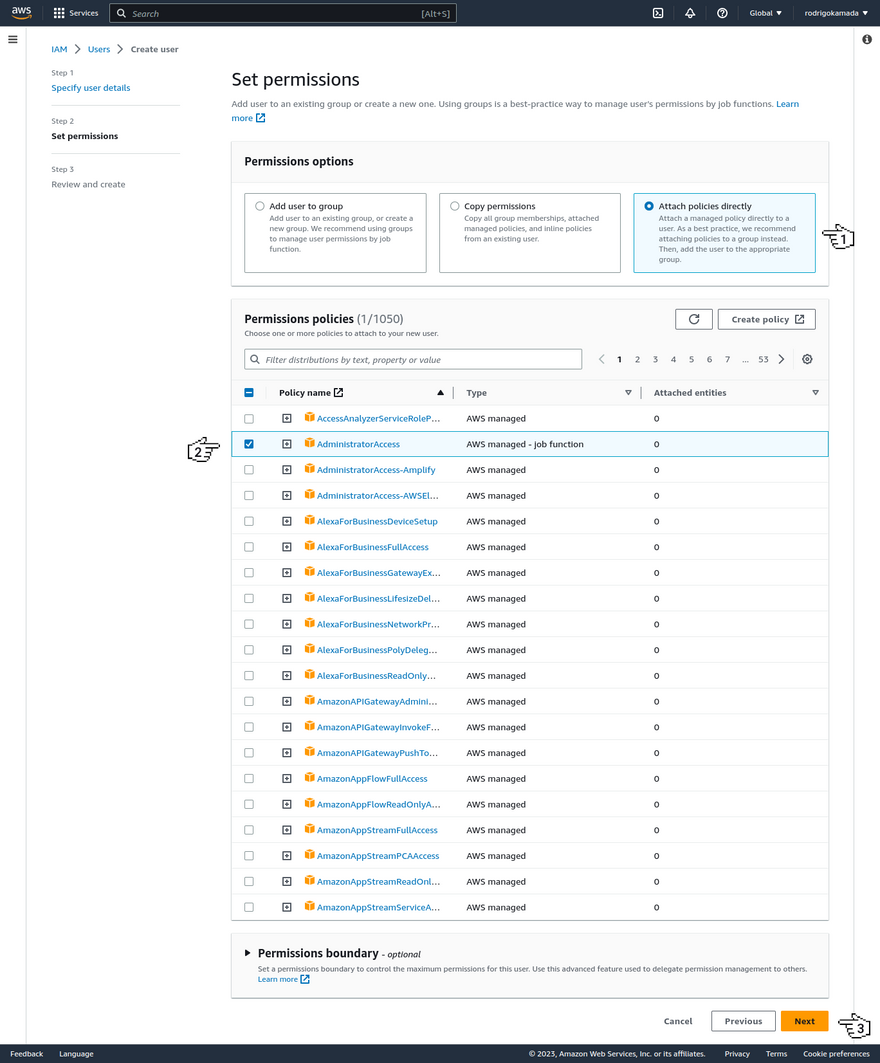

8. Now we will click on the option Attach policies directly, click on the item AdministratorAccess and click on the button Next.

AWS Lambda - Set permissions

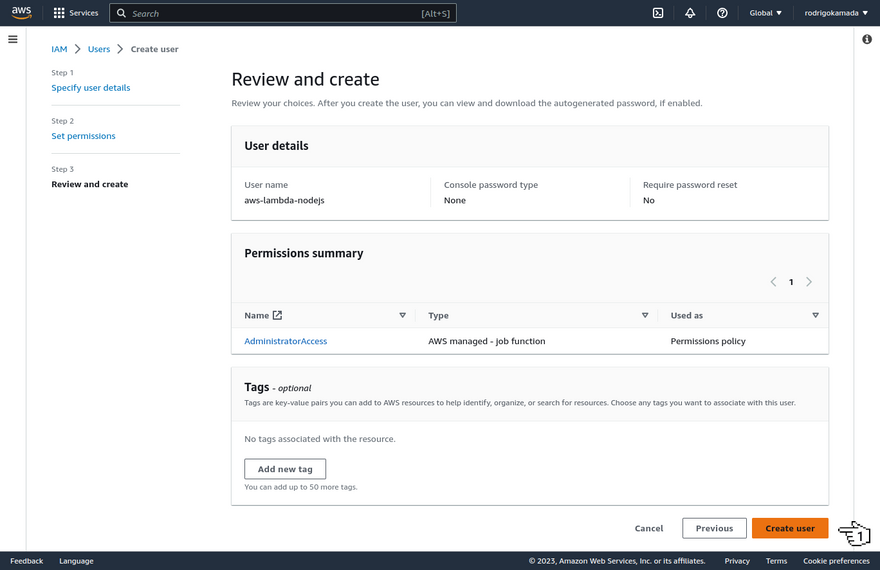

9. Next, we will click on the button Create user.

AWS Lambda - Review and create

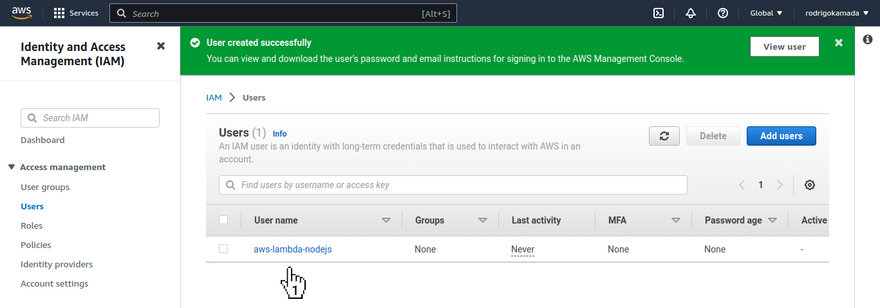

10. After create the user, we will click on the link with the user name.

AWS Lambda - Users

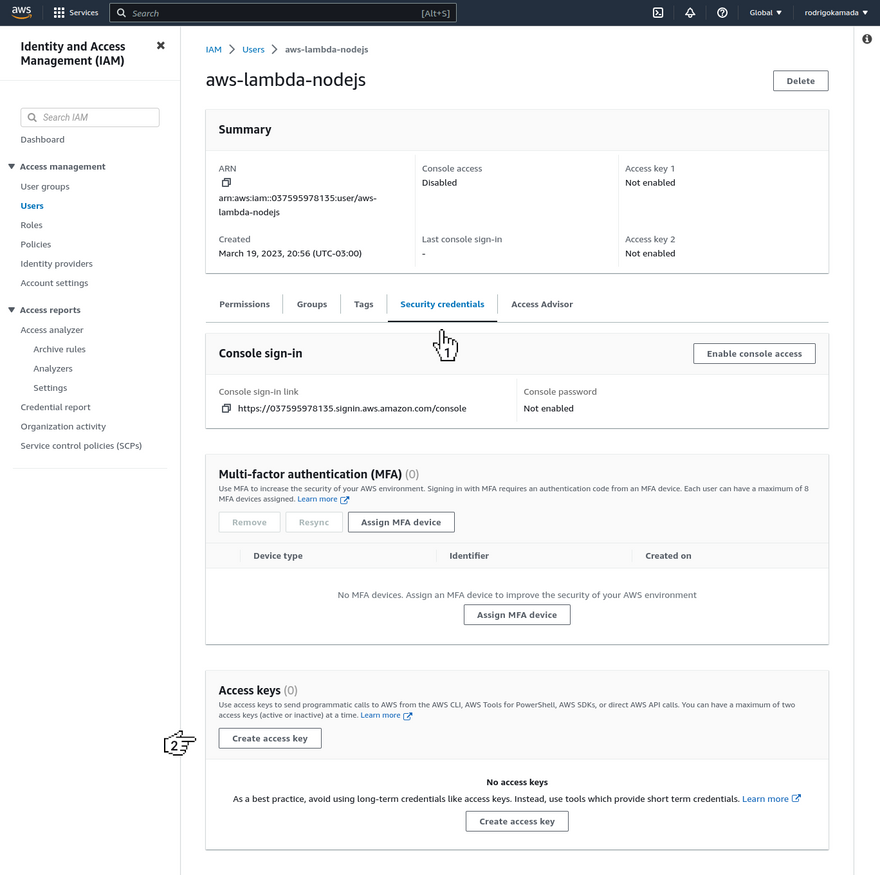

11. Now we will click on the tab Security credentials and click on the button Create access key.

AWS Lambda - Security credentials

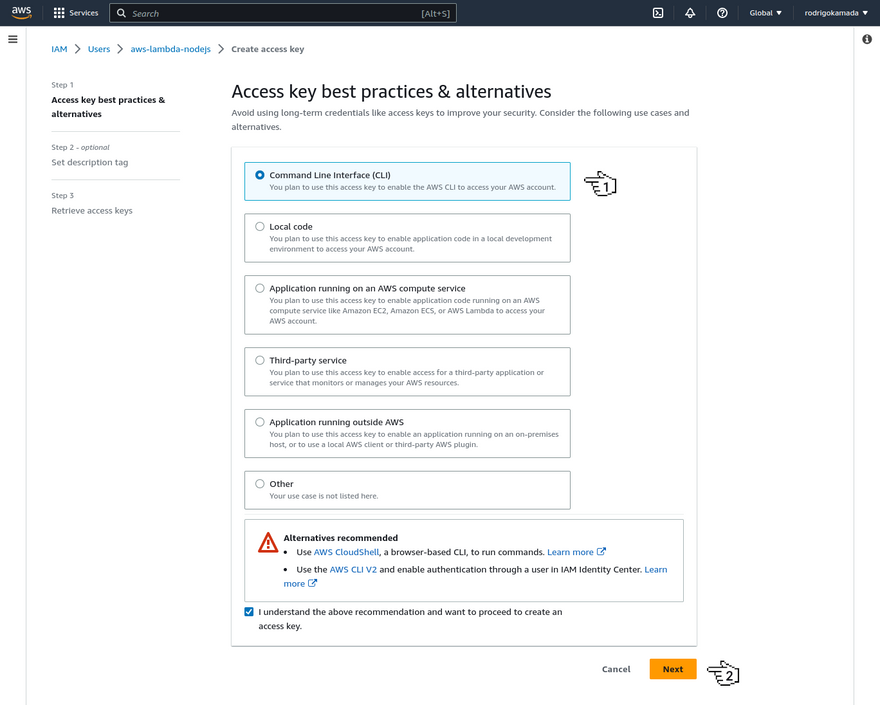

12. Next, we will click on the option Command Line Interface (CLI) and click on the button Next.

AWS Lambda - Access key best practices & alternatives

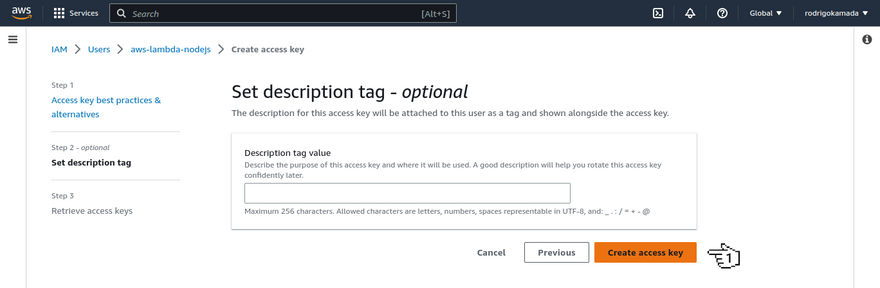

13. Then, we will click on the button Create access key.

AWS Lambda - Set description tag

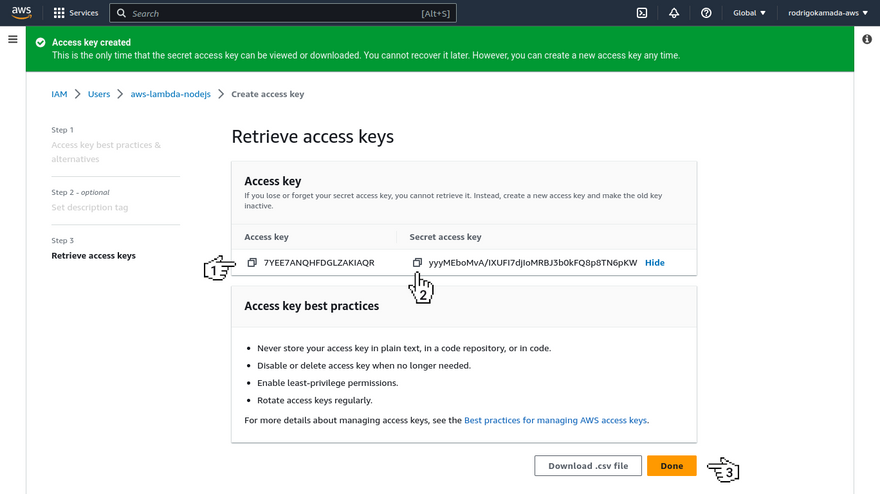

14. After create the access keys, we will copy the keys Access key and Secret access key because the keys will be used in the command line and click on the button Create access key.

AWS Lambda - Retrieve access keys

15. Ready! Your account was created, configured and the keys was created.

Create the Node.js application

Node.js is open source, cross-platform software that runs JavaScript code on the server. It is based on Google's V8 JavaScript interpreter.

1. Let's create the application. We will create the application folder.

mkdir nodejs-aws-lambda
cd nodejs-aws-lambda
Enter fullscreen mode Exit fullscreen mode

2. Now we will create the file package.json. The option -y allows the file to be created without the questions, such as application name, version, among others.

npm init -y
Enter fullscreen mode Exit fullscreen mode

3. Next, we will install the application dependencies express and serverless-http.

npm install express serverless-http
Enter fullscreen mode Exit fullscreen mode

4. After install the application dependencies, we will install the development dependencies ts-node, typescript and @types/express.

npm install rimraf ts-node typescript @types/express --save-dev
Enter fullscreen mode Exit fullscreen mode

5. Now we will create the TypeScript configuration file tsconfig.json.

./node_modules/.bin/tsc --init
Enter fullscreen mode Exit fullscreen mode

6. Next, we will configure the TypeScript file tsconfig.json.

{
  "compilerOptions": {
    "target": "ESNEXT",
    "module": "commonjs",
    "outDir": "./dist",
    "esModuleInterop": true,
    "forceConsistentCasingInFileNames": true,
    "strict": true,
    "skipLibCheck": true
  },
  "include": [
    "src/**/*"
  ]
}
Enter fullscreen mode Exit fullscreen mode

7. After configure the TypeScript file, we will add the transpilation script in the file package.json.

  "scripts": {
    "build": "rimraf dist && tsc"
  },
Enter fullscreen mode Exit fullscreen mode

8. Now we will create the folder src, src/routes and src/routes/v1.

mkdir -p src/routes/v1
Enter fullscreen mode Exit fullscreen mode

9. Next, we will create the routes file src/routes/v1/books.ts.

touch src/routes/v1/books.route.ts
Enter fullscreen mode Exit fullscreen mode

10. After create the routes file, we will add the routes in the file src/routes/v1/books.route.ts.

import { Request, Response, Router } from 'express';

const router = Router();

router.get('/', async (req: Request, res: Response) => {
  try {
    res.status(200).json([]);
  } catch (error) {
    console.error('An error ocurred:', error);
    res.status(500).json(error);
  }
});

router.get('/:id', async (req: Request, res: Response) => {
  try {
    res.status(200).json({});
  } catch (error) {
    console.error('An error ocurred:', error);
    res.status(500).json(error);
  }
});

router.post('/', async (req: Request, res: Response) => {
  try {
    res.status(201).json({});
  } catch (error) {
    console.error('An error occurred:', error);
    res.status(500).json(error);
  }
});

router.put('/:id', async (req: Request, res: Response) => {
  try {
    res.status(200).json({});
  } catch (error) {
    console.error('An error occurred:', error);
    res.status(500).json(error);
  }
});

router.delete('/:id', async (req: Request, res: Response) => {
  try {
    res.status(200).json({});
  } catch (error) {
    console.error('An error occurred:', error);
    res.status(500).json(error);
  }
});

export default router;
Enter fullscreen mode Exit fullscreen mode

11. Now we will create the file src/routes/v1/index.ts with the routes configuration of the version 1.

touch src/routes/v1/index.ts
Enter fullscreen mode Exit fullscreen mode

12. Next, we will add the routes configuration in the file src/routes/v1/index.ts.

import { Router } from 'express';

import books from './books.route';

const router = Router();

router.use('/books', books);

export default router;
Enter fullscreen mode Exit fullscreen mode

13. Then, we will create the file src/routes/index.ts with the routes configuration.

touch src/routes/index.ts
Enter fullscreen mode Exit fullscreen mode

14. After create the file with the routes configuration, we will add the routes configuration in the file src/routes/index.ts.

import { Router } from 'express';

import v1 from './v1';

const router = Router();

router.use('/v1', v1);

export default router;
Enter fullscreen mode Exit fullscreen mode

15. Now we will create the application file src/app.ts with the Express.js settings.

touch src/app.ts
Enter fullscreen mode Exit fullscreen mode

16. Next, we will add the Express.js settings in the file src/app.ts.

import express from 'express';
import serverless from 'serverless-http';

import routes from './routes';

const app = express();

app.use(express.json());

app.use('/', routes);

app.use((req: express.Request, res: express.Response, next: express.NextFunction) => {
  res.status(404).send();
});

app.use((err: any, req: express.Request, res: express.Response, next: express.NextFunction) => {
  res.status(err.status || 500).send();
});

export const handler = serverless(app);
Enter fullscreen mode Exit fullscreen mode

17. After add the Express.js settings, we will create the Serverless configuration file serverless.yml with the AWS Lambda settings.

touch serverless.yml
Enter fullscreen mode Exit fullscreen mode

18. Now we will add the AWS Lambda settings in the file serverless.yml.

service: nodejs-aws-lambda
provider:
  name: aws
  runtime: nodejs18.x
functions:
  app:
    handler: dist/app.handler
    events:
      - http: ANY /
      - http: ANY /{proxy+}
Enter fullscreen mode Exit fullscreen mode

19. Next, we will build the application.

npm run build

> nodejs-aws-lambda@1.0.0 build /home/rodrigokamada/nodejs-aws-lambda
> rimraf dist && tsc
Enter fullscreen mode Exit fullscreen mode

20. After build the application, we will install serverless tool.

npm install -g serverless
Enter fullscreen mode Exit fullscreen mode

21. Now we will configure the serverless tool.

serverless config credentials --provider aws --key 7YEE7ANQHFDGLZAKIAQR --secret yyyMEboMvA/IXUFI7djIoMRBJ3b0kFQ8p8TN6pKW
✔ Profile "default" has been configured
Enter fullscreen mode Exit fullscreen mode

22. Next, we will deploy the application.

serverless deploy

Deploying nodejs-aws-lambda to stage dev (us-east-1)

✔ Service deployed to stack nodejs-aws-lambda-dev (56s)

endpoints:
  ANY - https://5imsknki87.execute-api.us-east-1.amazonaws.com/dev
  ANY - https://5imsknki87.execute-api.us-east-1.amazonaws.com/dev/{proxy+}
functions:
  app: nodejs-aws-lambda-dev-app (853 kB)

Monitor Express APIs by route with the Serverless Console: run "serverless --console"
Enter fullscreen mode Exit fullscreen mode

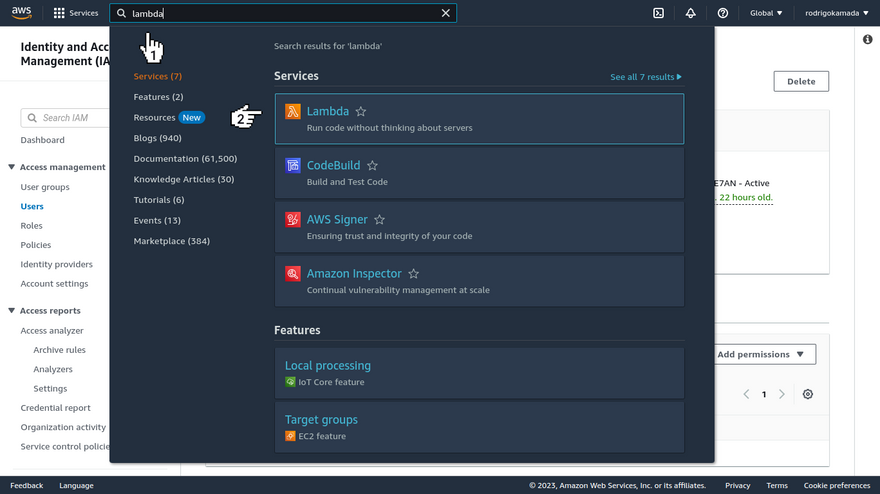

23. After deploy the application, we will confirm if the application was deployed on the AWS Lambda service. We will type lambda in the search field and click on the option Lambda.

AWS Lambda - Lambda service

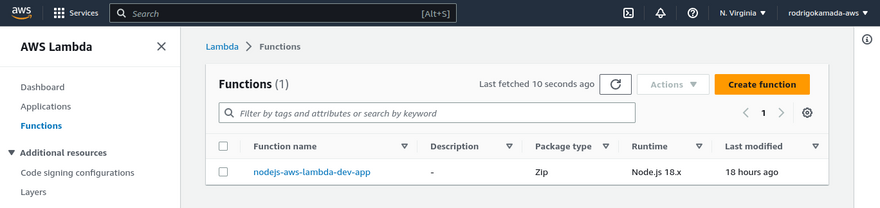

24. Now we will confirm that a function was created with the name nodejs-aws-lambda-dev-app.

AWS Lambda - Lambda functions

25. Ready! The application was created and deployed on AWS Lambda.

The application repository is available at https://github.com/rodrigokamada/nodejs-aws-lambda.

Test the application on the AWS Lambda service

1. Let's test the application on the AWS Lambda service. Send a request on the route created and the URL provided.

curl -s "https://5imsknki87.execute-api.us-east-1.amazonaws.com/dev/v1/books" | jq
[
  {
    "id": "ebb3d966-74e4-11ed-8db0-136d663b98e7",
    "title": "Some Title",
    "author": "Some Author"
  }
]
Enter fullscreen mode Exit fullscreen mode

2. Ready! We tested the serverless API deployed on the AWS Lambda service.

Conclusion

Summarizing what was covered in this article:

  • We created an account on the Amazon Web Services (AWS).
  • We created the access keys on the Amazon Web Services (AWS).
  • We created a Node.js application.
  • We created the routes in the Node.js application using Express.js.
  • We tested the Node.js application on the AWS Lambda service.

You can use this article to provide a API in the cloud without having to manage servers or clusters.

Thank you for reading and I hope you enjoyed the article!

This tutorial was posted on my blog in portuguese.

To stay updated whenever I post new articles, follow me on Twitter and LinkedIn.
