Hosting an Angular application on Amazon S3 using GitHub Actions

Introduction

Angular is a development platform for building WEB, mobile and desktop applications using HTML, CSS and TypeScript (JavaScript). Currently, Angular is at version 14 and Google is the main maintainer of the project.

GitHub is a source code and file storage service with version control using git tool. GitHub Actions is a service to automate the software workflow.

Amazon S3 (Simple Storage Service) is an object storage service offering scalability, data availability, security and performance.

Prerequisites

Before you start, you need to install and configure the tools:

Getting started

Create and configure the account on the Amazon S3

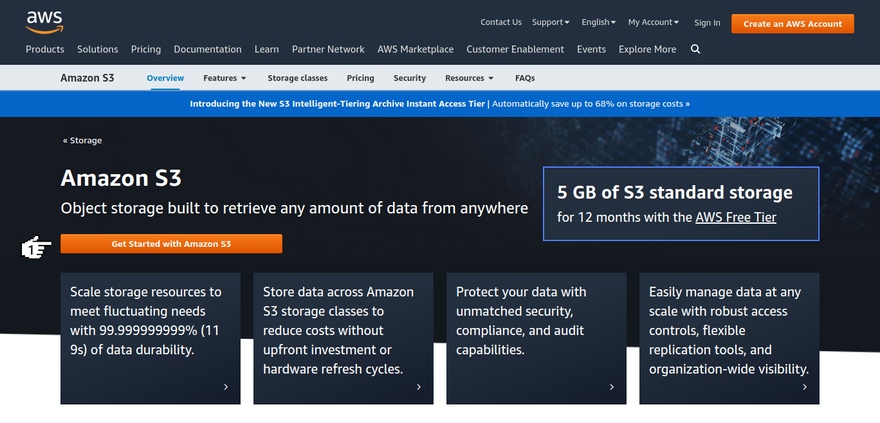

1. Let's create and configure the account. Access the site https://aws.amazon.com/s3/ and click on the button Get Started with Amazon S3.

Amazon S3 - Home page

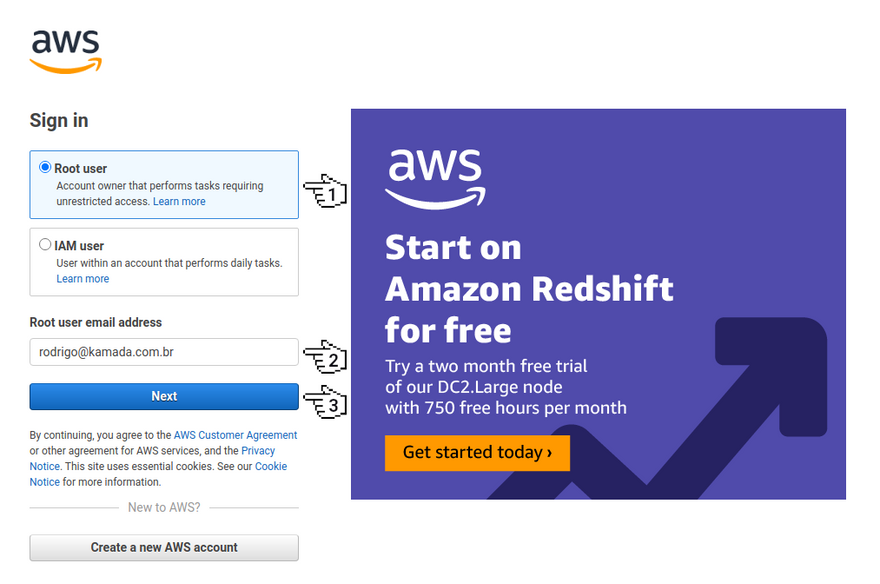

2. Click on the option Root user, fill in the field Root user email address and click on the button Next.

Amazon S3 - Sign in

Note:

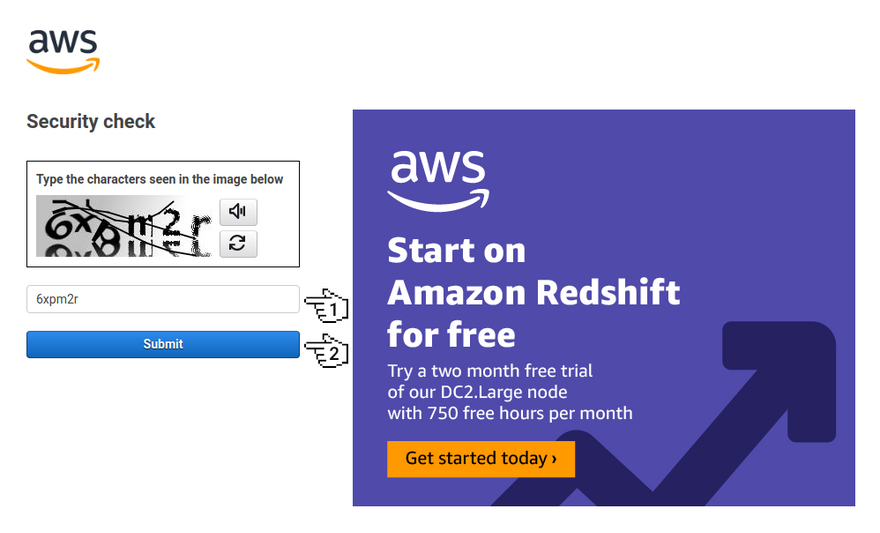

3. Fill in the field Security check and click on the button Submit.

Amazon S3 - Security check

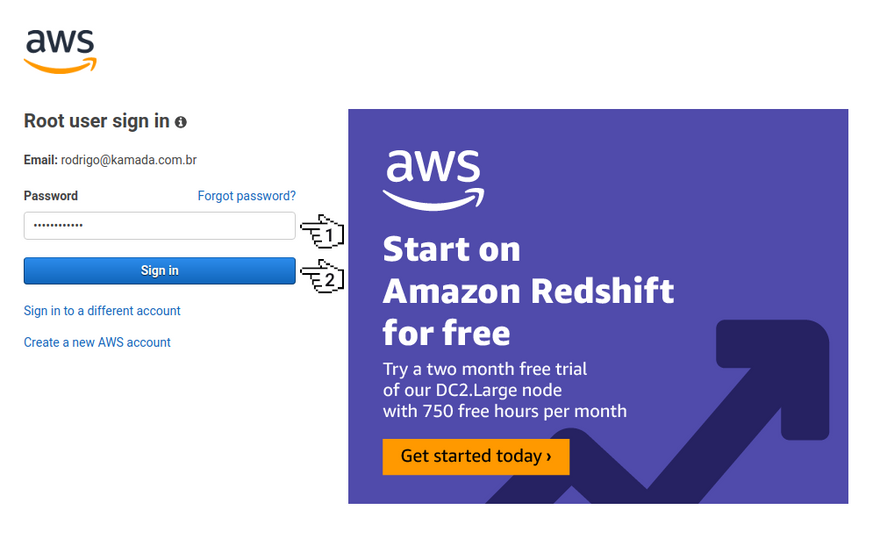

4. Fill in the field Password and click on the button Sign in.

Amazon S3 - Root user sign in

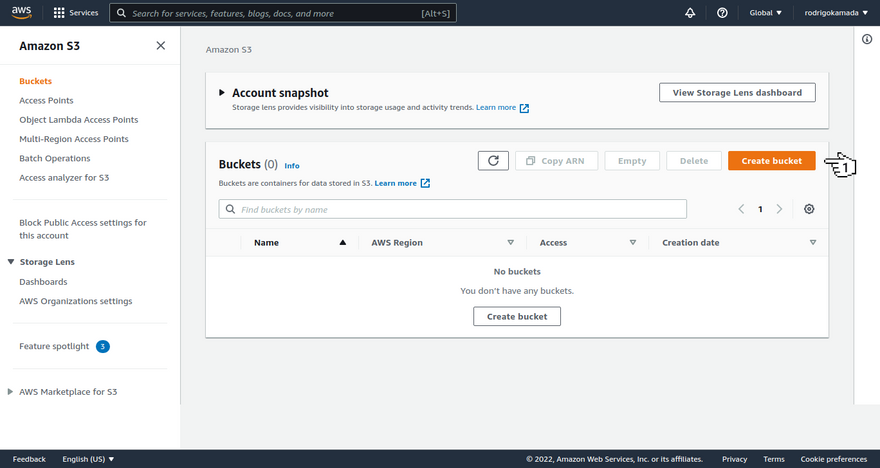

5. Click on the button Create bucket.

Amazon S3 - Buckets

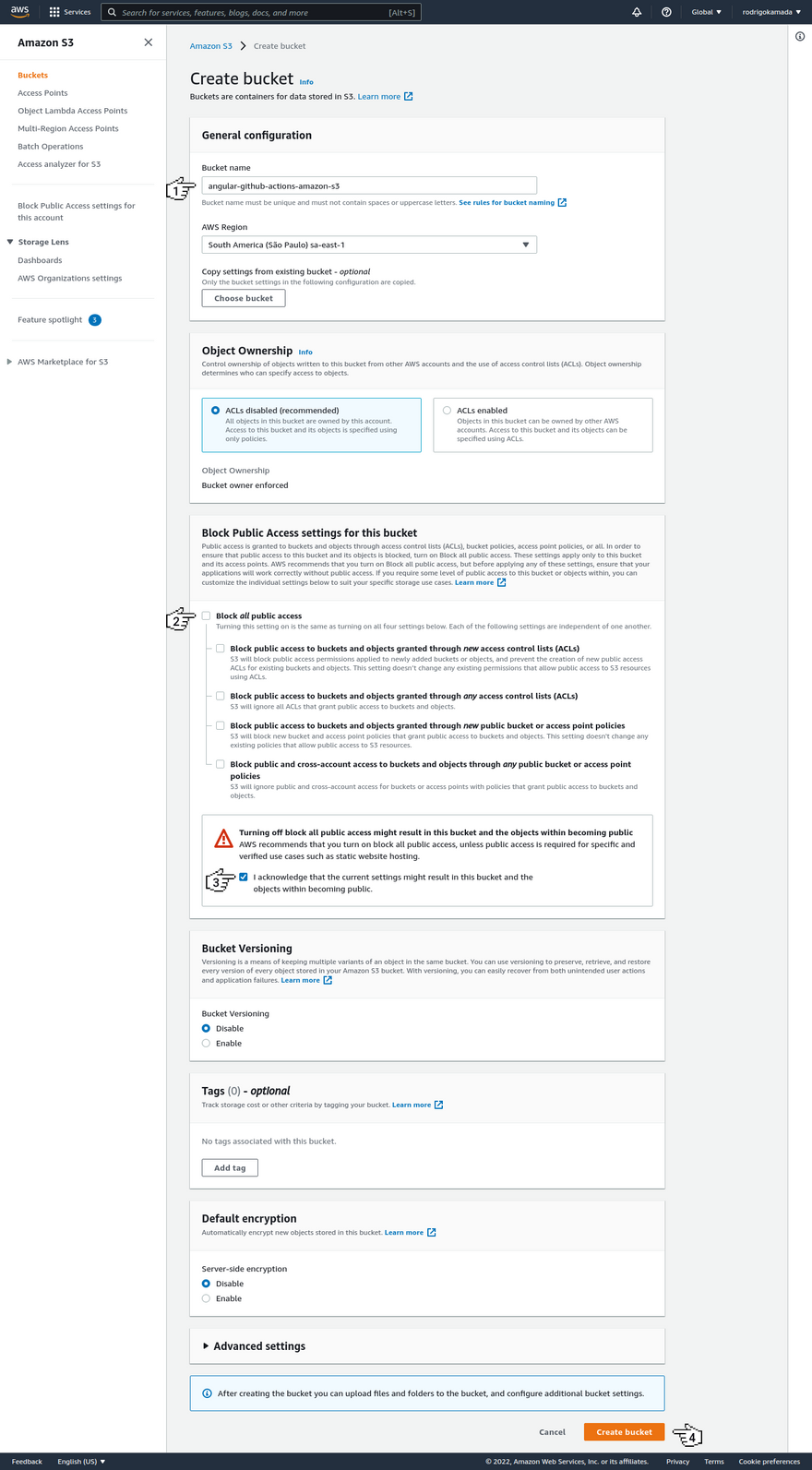

6. Fill in the field Bucket name, click on the option Block all public access to uncheck this option, I acknowledge that the current settings might result in this bucket and the objects within becoming public. and click on the button Create bucket.

Amazon S3 - Create bucket

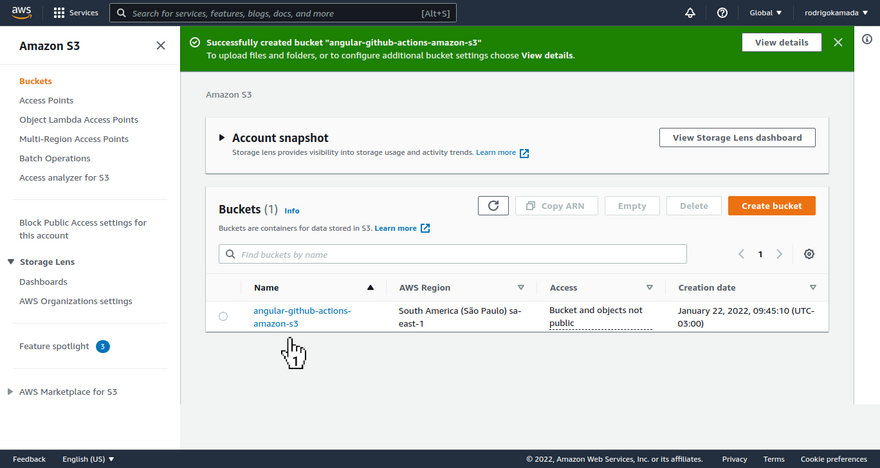

7. Click on the link angular-github-actions-amazon-s3 with the bucket name.

Amazon S3 - Buckets

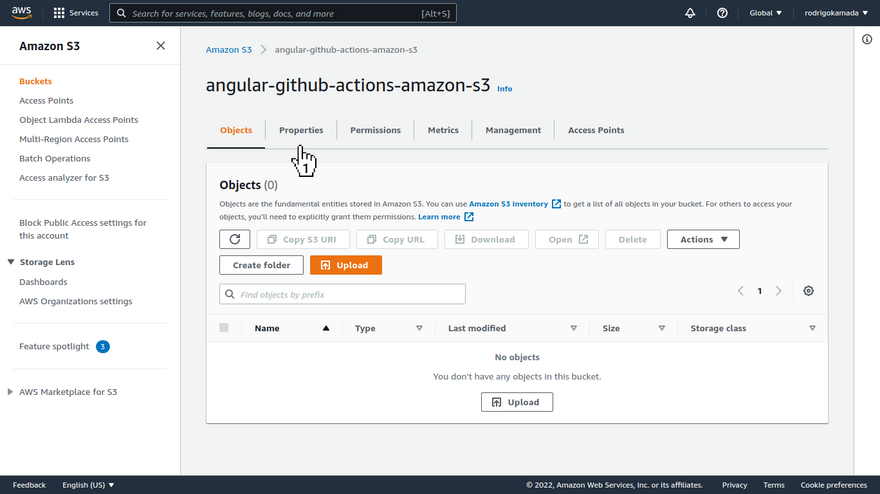

8. Click on the link Properties.

Amazon S3 - Bucket objects

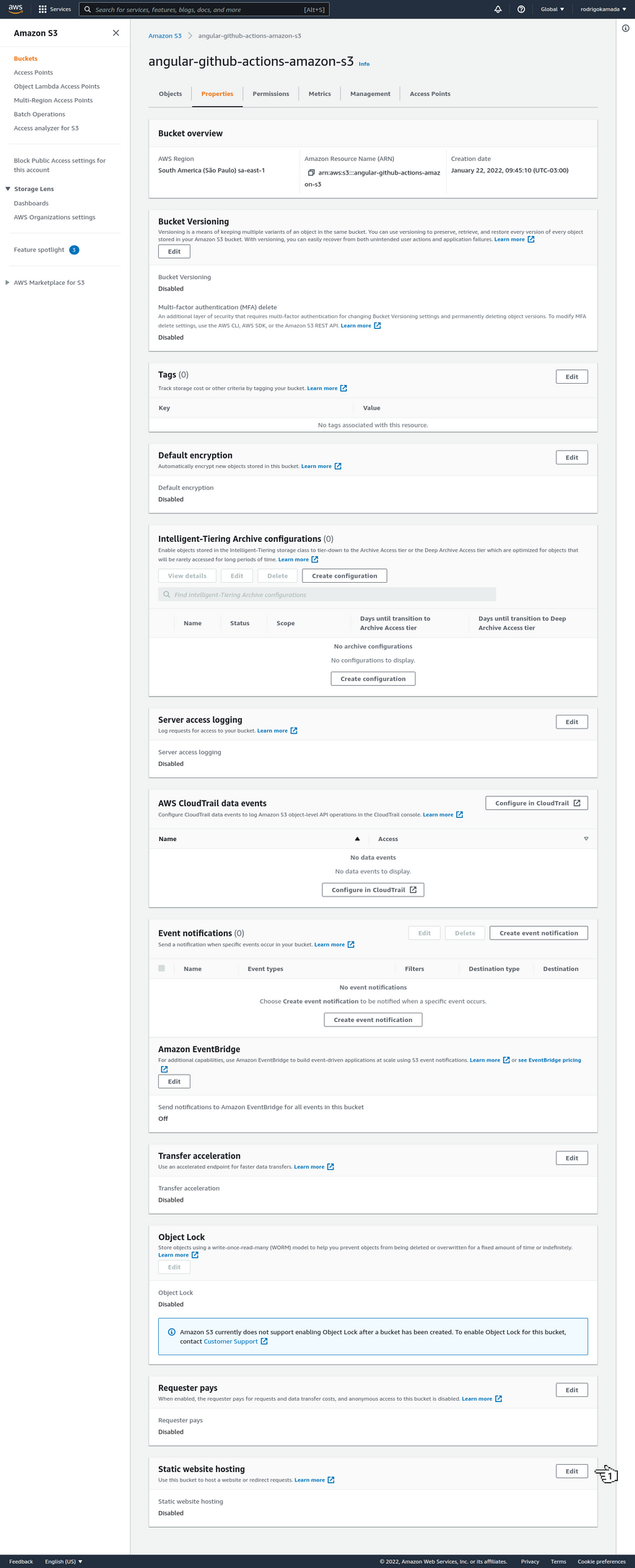

9. Click on the button Edit.

Amazon S3 - Bucket properties

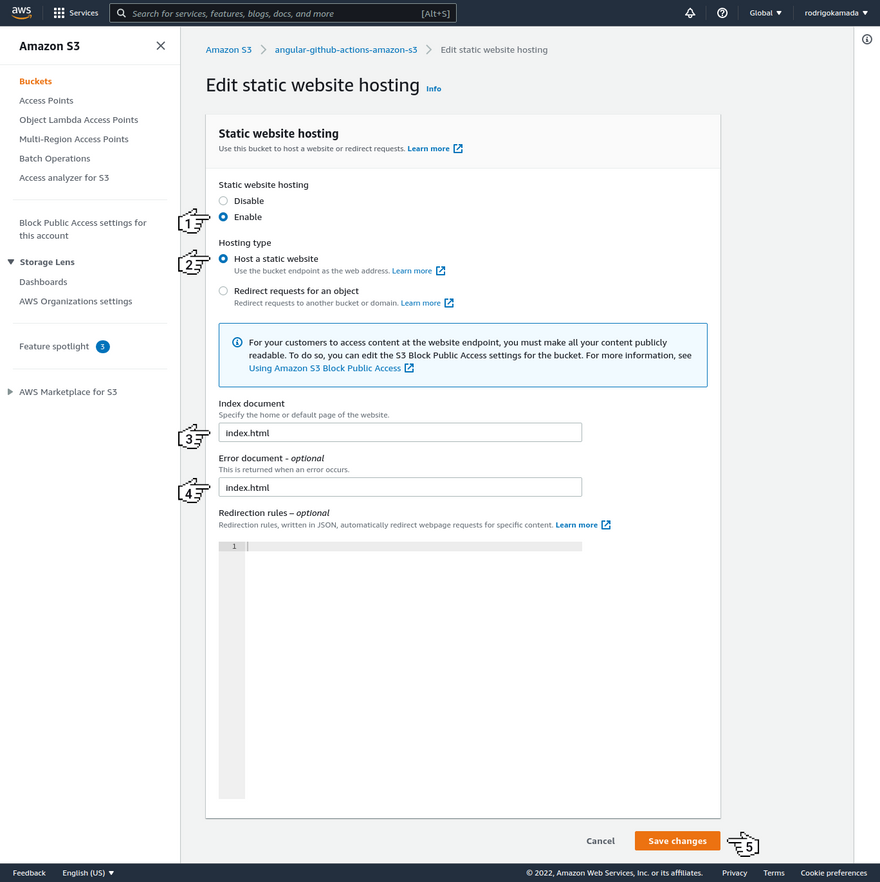

10. Click on the options Enable, Host a static website, fill in the fields Index document, Error document - optional and click on the button Save changes.

Amazon S3 - Edit static website hosting

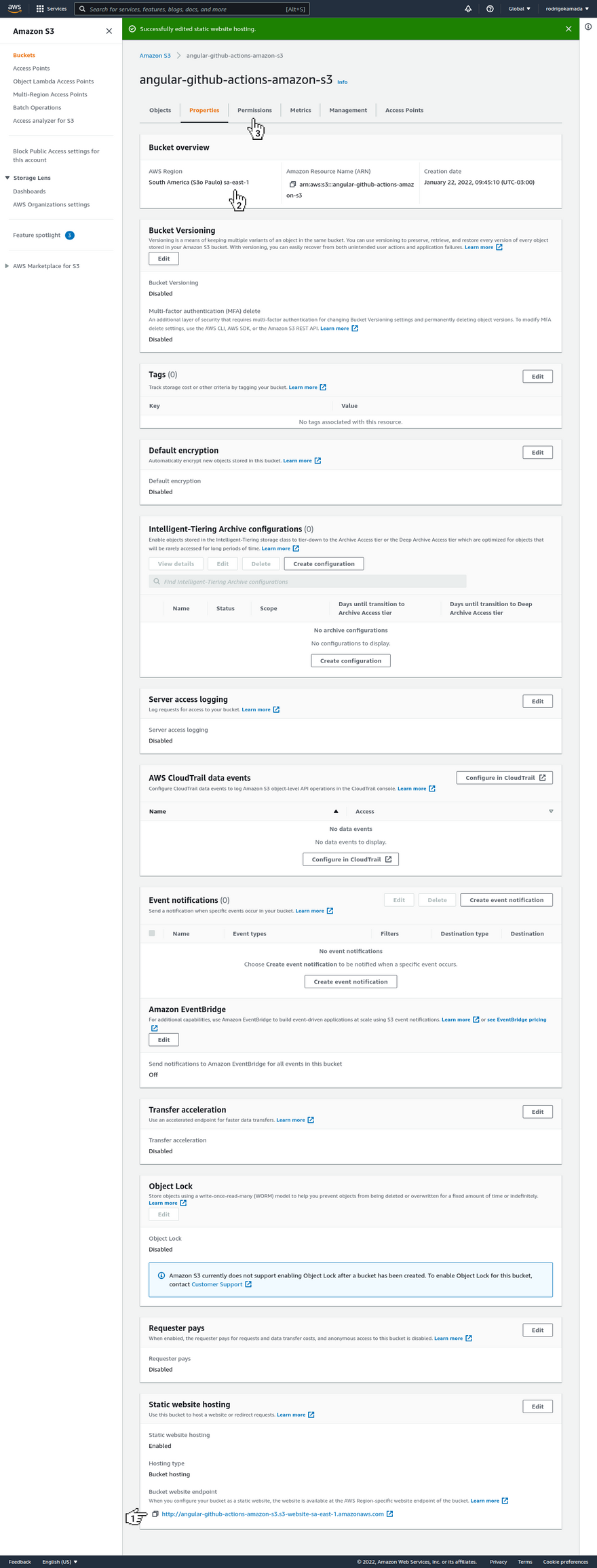

11. Copy the URL and the region displayed, in my case, the URL http://angular-github-actions-amazon-s3.s3-website-sa-east-1.amazonaws.com and the region sa-east-1 were displayed because the URL will used to access the Angular application and the region will used in the GitHub Actions file setting and click on the link Permissions.

Amazon S3 - Bucket properties

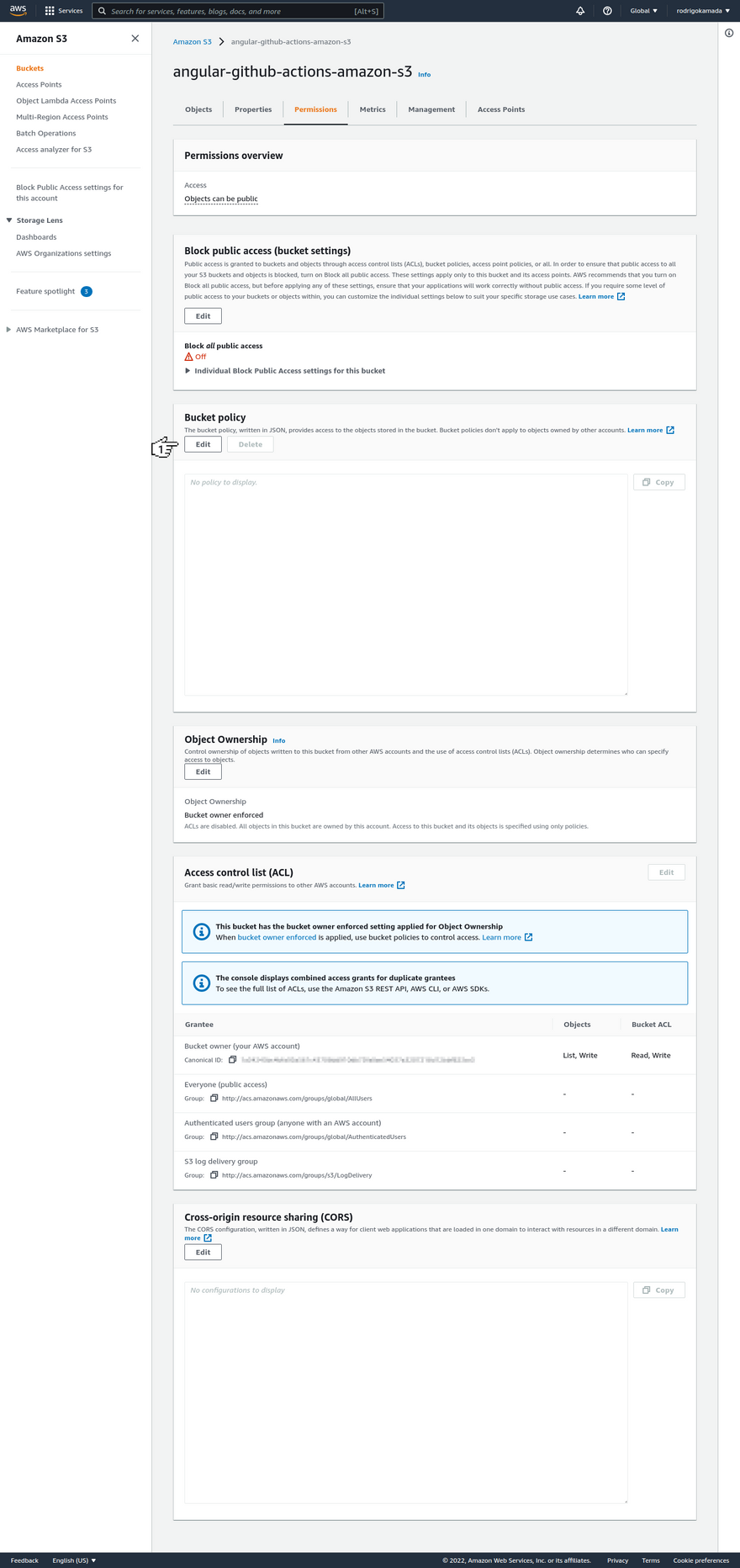

12. Click on the button Edit.

Amazon S3 - Bucket permissions

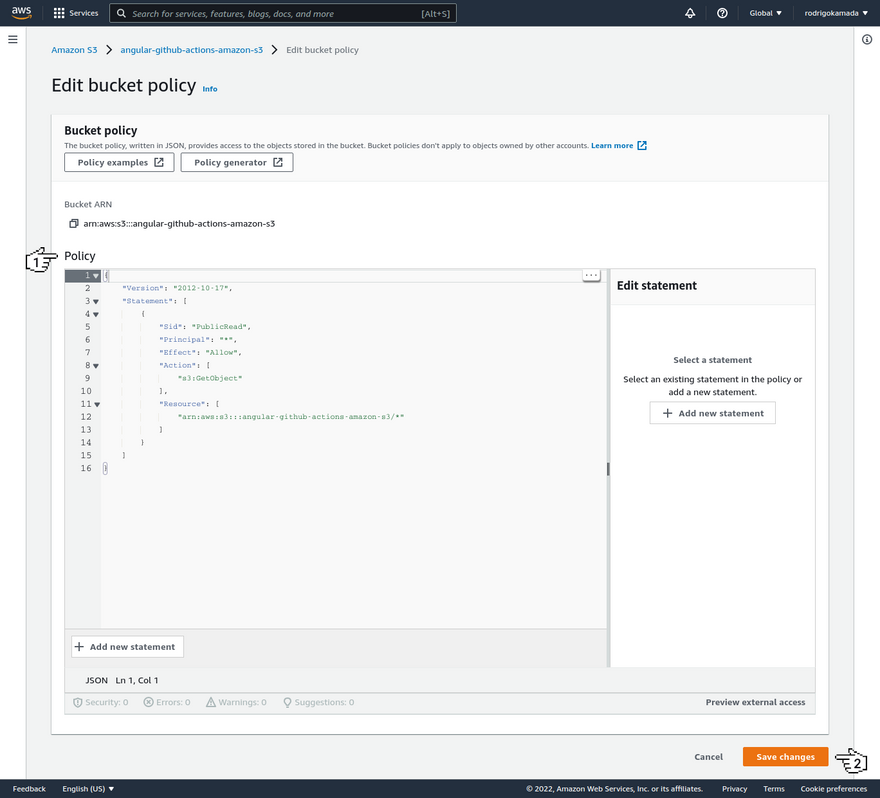

13. Fill in the fields Policy with the content below and click on the button Save changes.

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Sid": "PublicRead",
      "Principal": "*",
      "Effect": "Allow",
      "Action": [
        "s3:GetObject"
      ],
      "Resource": [
        "arn:aws:s3:::angular-github-actions-amazon-s3/*"
      ]
    }
  ]
}
Enter fullscreen mode Exit fullscreen mode

Amazon S3 - Bucket policy

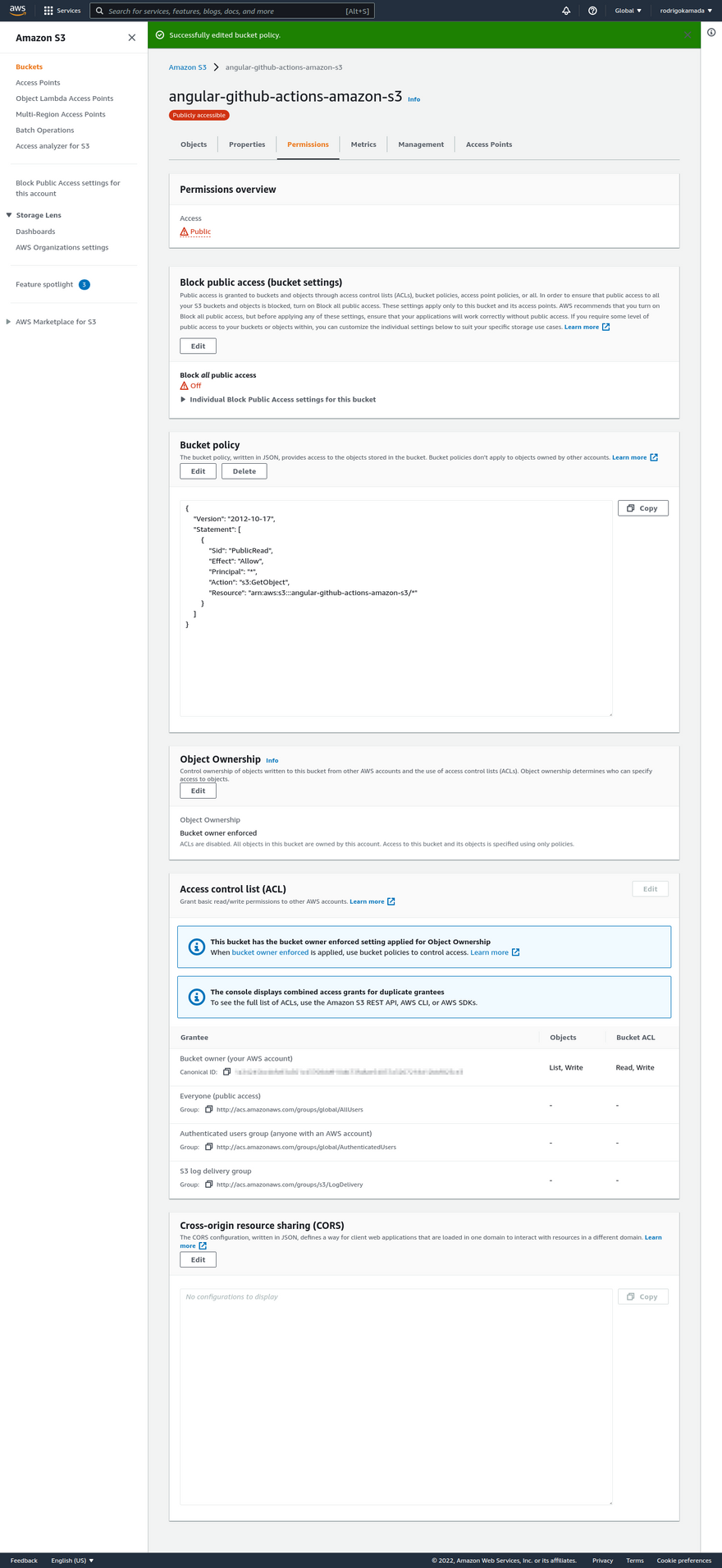

14. Ready! Account created and configured and bucket created and configured.

Amazon S3 - Bucket permissions

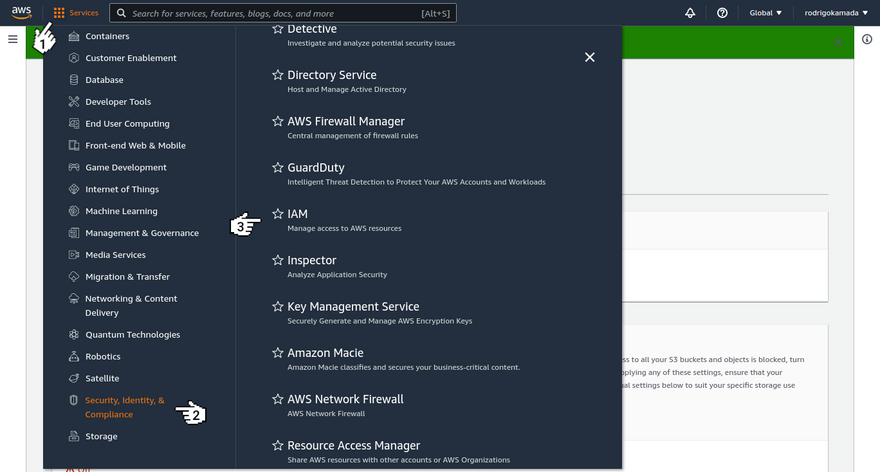

15. Click on the menu Services, Security, Identity & Compliance and IAM.

Amazon S3 - Menu IAM

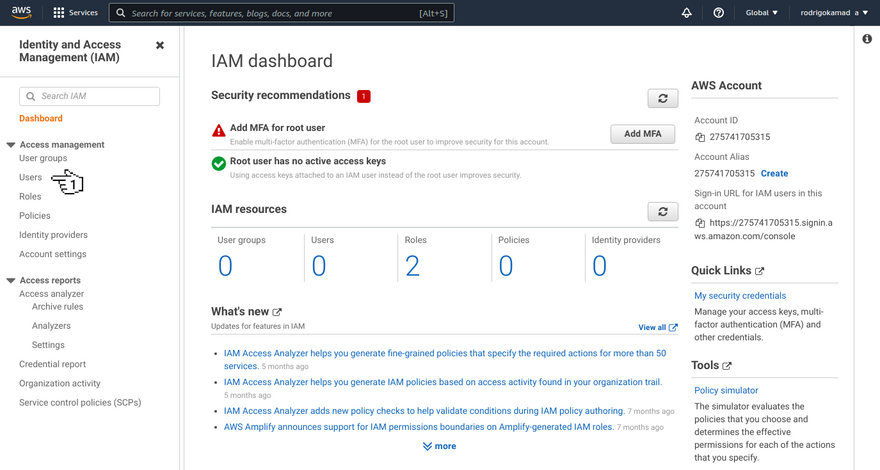

16. Click on the link Users.

Amazon S3 - IAM dashboard

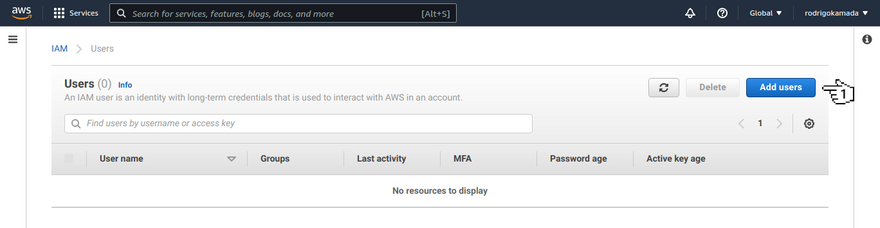

17. Click on the button Add users.

Amazon S3 - Users

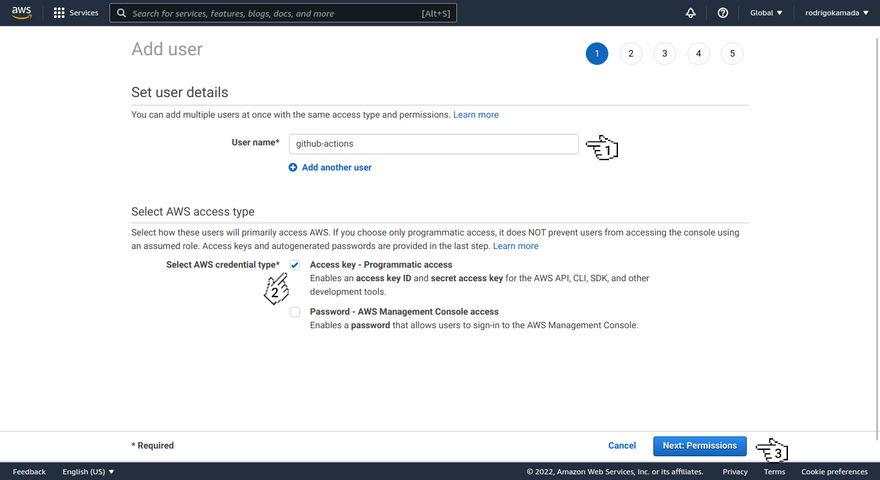

18. Fill in the field User name, click on the option Access key - Programmatic access and click on the button Next: Permissions.

Amazon S3 - Set user details

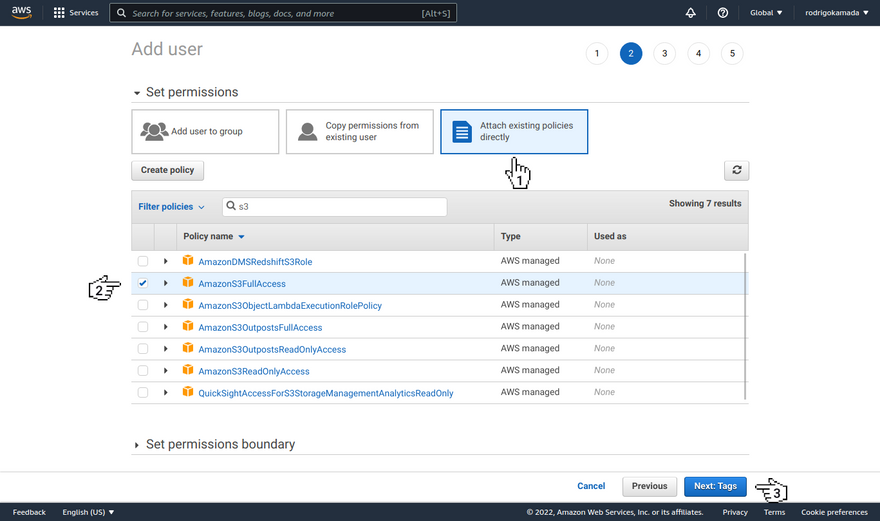

19. Click on the options Attach existing policies directly, AmazonS3FullAccess and click on the button Next: Tags.

Amazon S3 - Set premissions

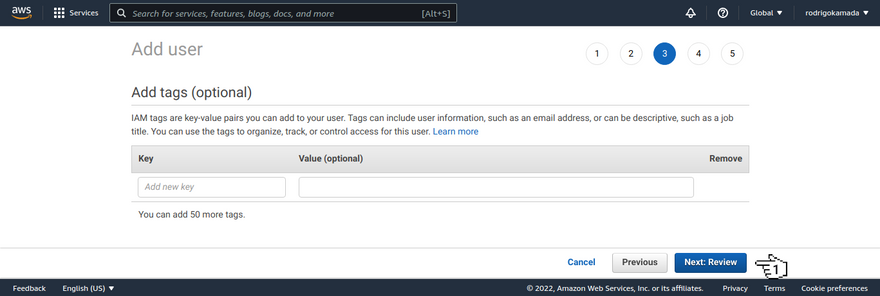

20. Click on the button Next: Review.

Amazon S3 - Set tags

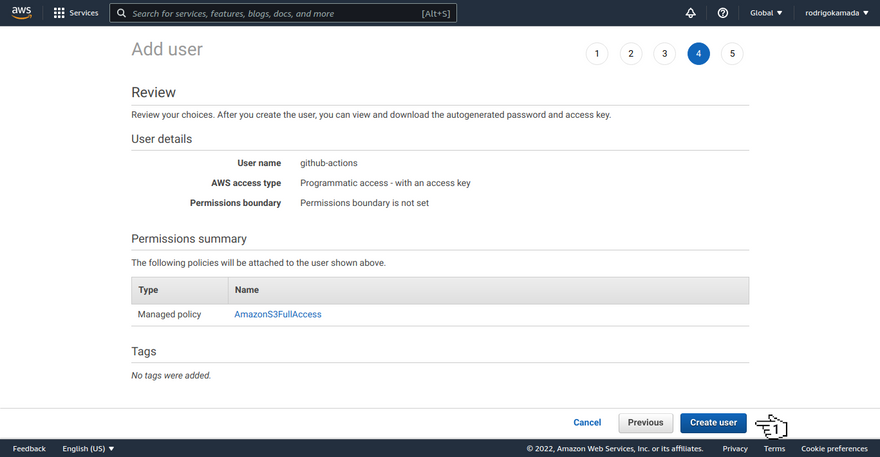

21. Click on the button Create user.

Amazon S3 - Review

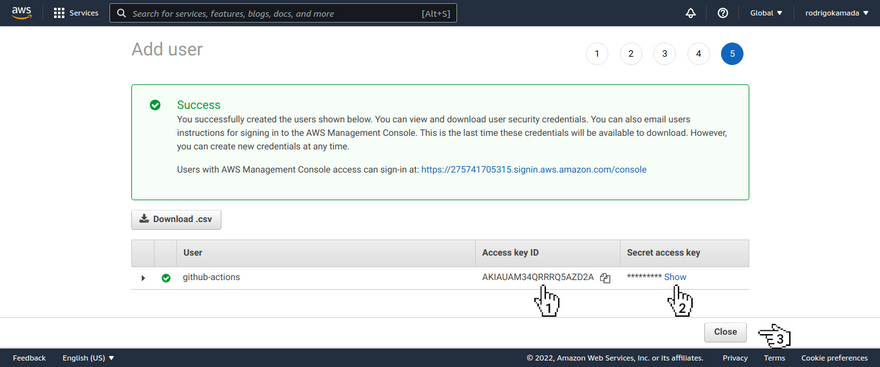

22. Copy the Access key ID displayed, in my case, the Access key ID AKIAUAM34QRRRQ5AZD2A was displayed, click on the link Show, copy the Secret Access key displayed because the Access key ID and Secret Access key will be configured in the GitHub repository and click on the button Close.

Amazon S3 - Add user success

23. Ready! Access keys created.

Create the account and the repository on the GitHub

1. Let's create the account and the repository. Do steps 1 to 6 of the post Hosting an Angular application on GitHub Pages using GitHub Actions in the session Create and configure the account on the GitHub.

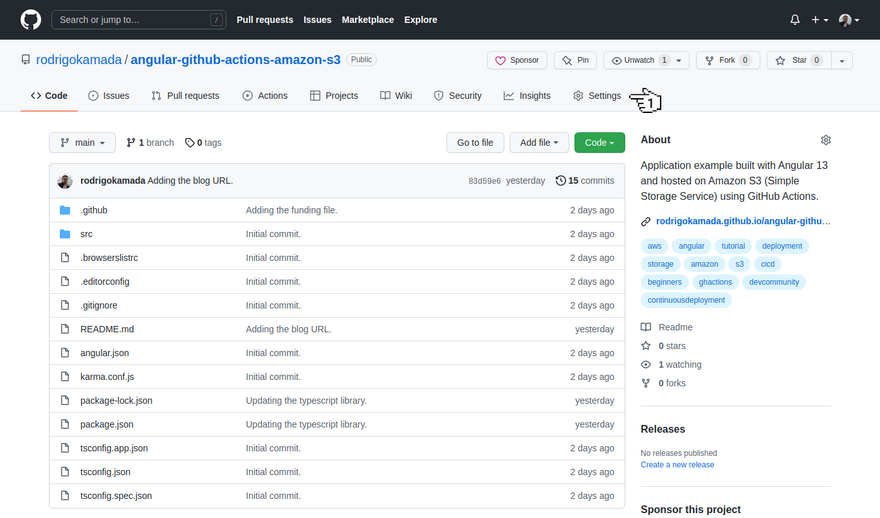

2. Click on the menu Settings.

GitHub - Code

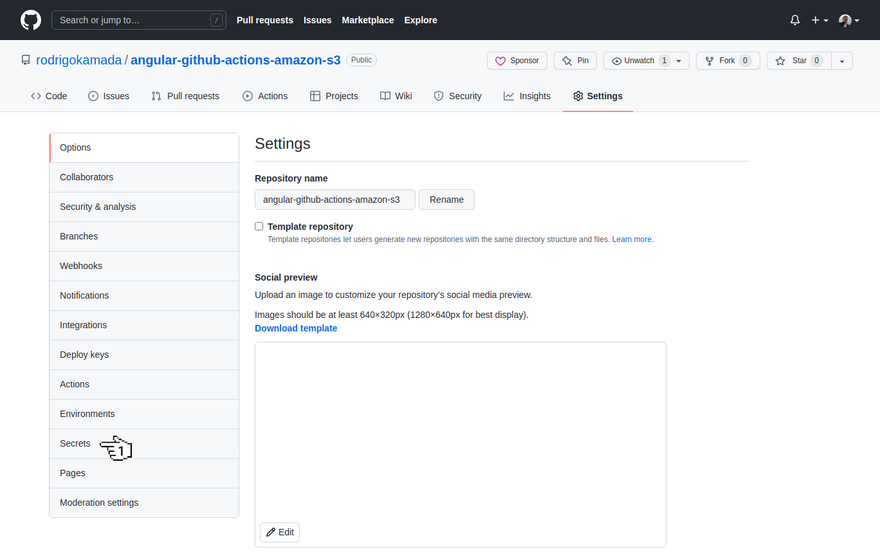

3. Click on the side menu Secrets.

GitHub - Settings

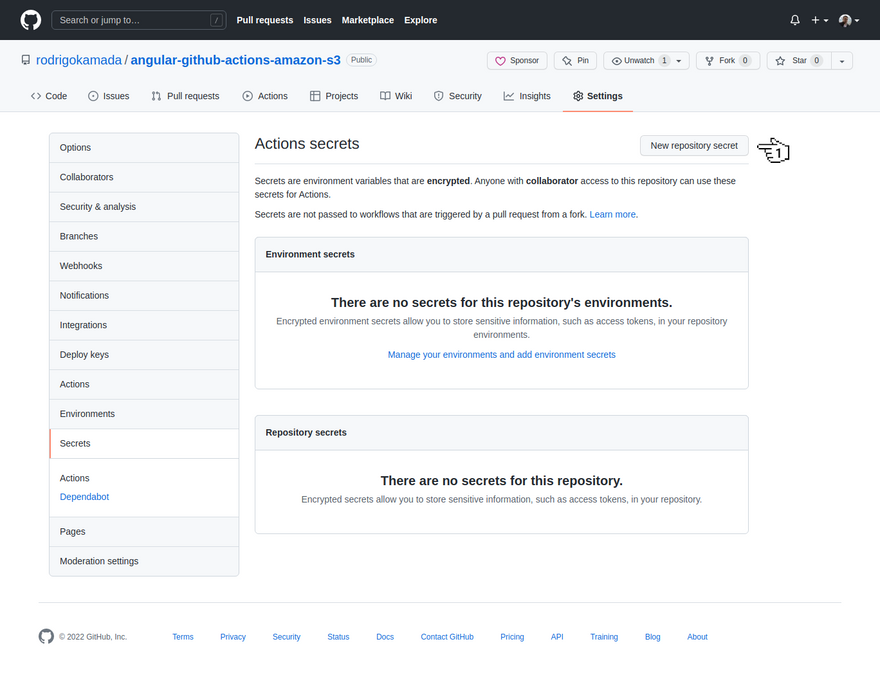

4. Click on the button New repository secret.

GitHub - Secrets

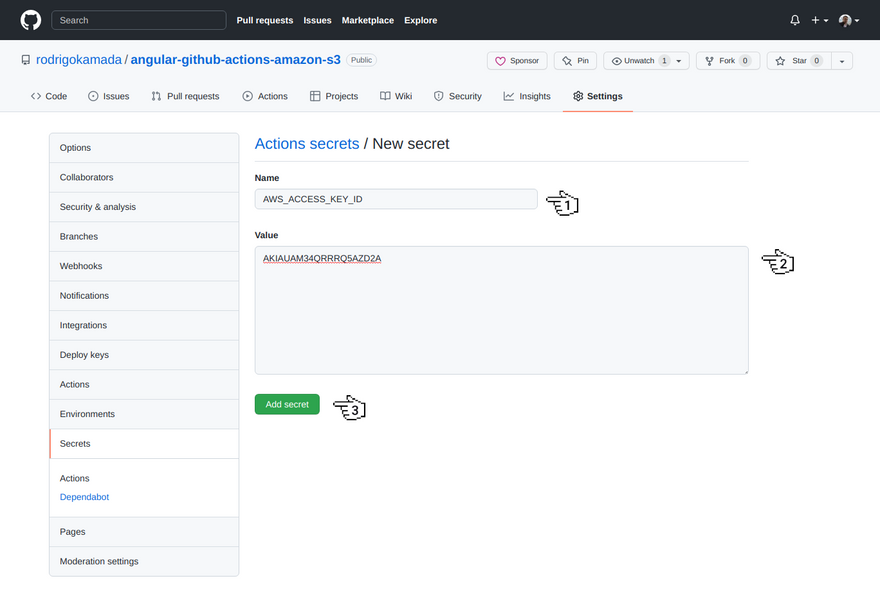

5. Fill in the fields Name, Value and click on the button Add secret to configure the key with the Access key ID.

GitHub - Add access key ID

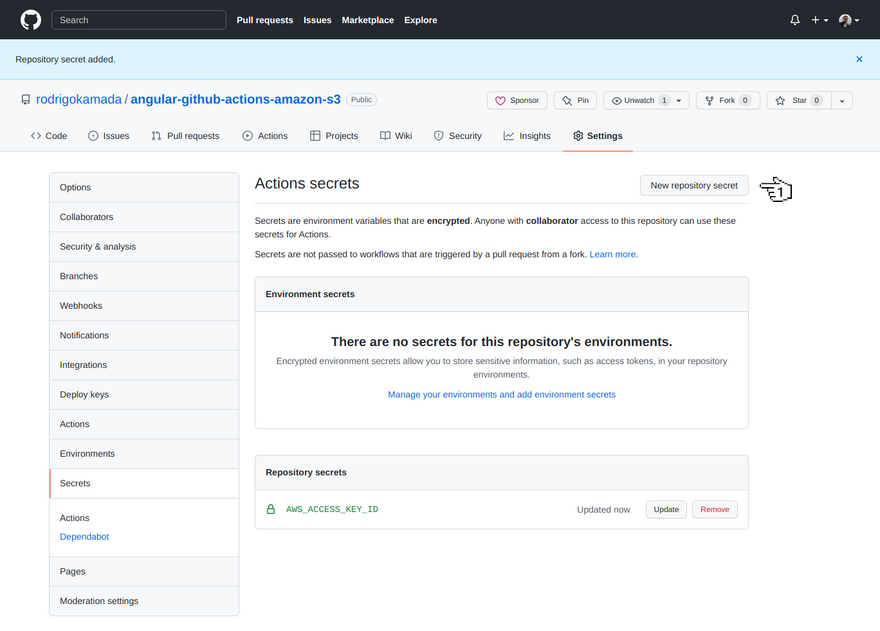

6. Click on the button New repository secret.

GitHub - Secrets

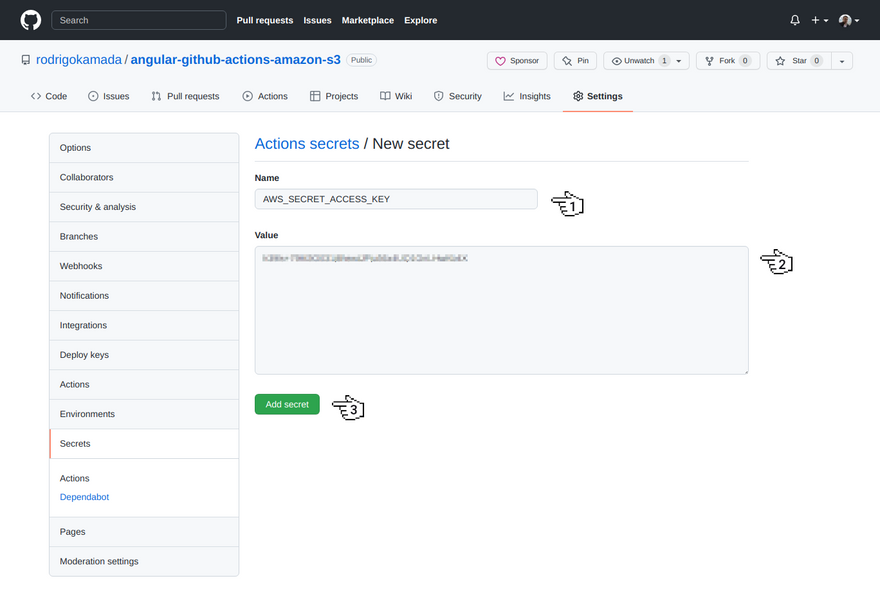

7. Fill in the fields Name, Value and click on the button Add secret to configure the key with the Secret Access key.

GitHub - Add secret access key

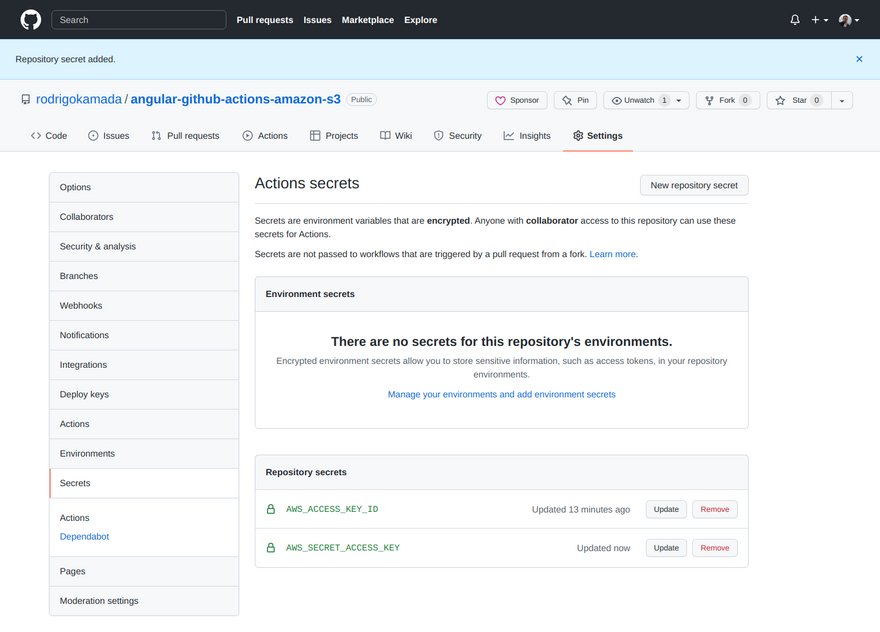

8. Ready! Access keys configured.

GitHub - Secrets configured

Create the Angular application

1. Let's create the application with the Angular base structure using the @angular/cli with the route file and the SCSS style format.

ng new angular-github-actions-amazon-s3 --routing true --style scss
CREATE angular-github-actions-amazon-s3/README.md (1074 bytes)
CREATE angular-github-actions-amazon-s3/.editorconfig (274 bytes)
CREATE angular-github-actions-amazon-s3/.gitignore (548 bytes)
CREATE angular-github-actions-amazon-s3/angular.json (3363 bytes)
CREATE angular-github-actions-amazon-s3/package.json (1096 bytes)
CREATE angular-github-actions-amazon-s3/tsconfig.json (863 bytes)
CREATE angular-github-actions-amazon-s3/.browserslistrc (600 bytes)
CREATE angular-github-actions-amazon-s3/karma.conf.js (1449 bytes)
CREATE angular-github-actions-amazon-s3/tsconfig.app.json (287 bytes)
CREATE angular-github-actions-amazon-s3/tsconfig.spec.json (333 bytes)
CREATE angular-github-actions-amazon-s3/.vscode/extensions.json (130 bytes)
CREATE angular-github-actions-amazon-s3/.vscode/launch.json (474 bytes)
CREATE angular-github-actions-amazon-s3/.vscode/tasks.json (938 bytes)
CREATE angular-github-actions-amazon-s3/src/favicon.ico (948 bytes)
CREATE angular-github-actions-amazon-s3/src/index.html (314 bytes)
CREATE angular-github-actions-amazon-s3/src/main.ts (372 bytes)
CREATE angular-github-actions-amazon-s3/src/polyfills.ts (2338 bytes)
CREATE angular-github-actions-amazon-s3/src/styles.scss (80 bytes)
CREATE angular-github-actions-amazon-s3/src/test.ts (745 bytes)
CREATE angular-github-actions-amazon-s3/src/assets/.gitkeep (0 bytes)
CREATE angular-github-actions-amazon-s3/src/environments/environment.prod.ts (51 bytes)
CREATE angular-github-actions-amazon-s3/src/environments/environment.ts (658 bytes)
CREATE angular-github-actions-amazon-s3/src/app/app-routing.module.ts (245 bytes)
CREATE angular-github-actions-amazon-s3/src/app/app.module.ts (393 bytes)
CREATE angular-github-actions-amazon-s3/src/app/app.component.scss (0 bytes)
CREATE angular-github-actions-amazon-s3/src/app/app.component.html (23364 bytes)
CREATE angular-github-actions-amazon-s3/src/app/app.component.spec.ts (1151 bytes)
CREATE angular-github-actions-amazon-s3/src/app/app.component.ts (237 bytes)
✔ Packages installed successfully.
    Successfully initialized git.
Enter fullscreen mode Exit fullscreen mode

2. Change the package.json file and add the scripts below.

  "build:prod": "ng build --configuration production",
  "test:headless": "ng test --watch=false --browsers=ChromeHeadless"
Enter fullscreen mode Exit fullscreen mode

3. Run the test with the command below.

npm run test:headless

> angular-github-actions-amazon-s3@1.0.0 test:headless
> ng test --watch=false --browsers=ChromeHeadless

⠙ Generating browser application bundles (phase: setup)...22 01 2022 22:11:29.773:INFO [karma-server]: Karma v6.3.11 server started at http://localhost:9876/
22 01 2022 22:11:29.774:INFO [launcher]: Launching browsers ChromeHeadless with concurrency unlimited
22 01 2022 22:11:29.781:INFO [launcher]: Starting browser ChromeHeadless
✔ Browser application bundle generation complete.
22 01 2022 22:11:37.472:INFO [Chrome Headless 97.0.4692.71 (Linux x86_64)]: Connected on socket 2NkcZwzLS5MNuDnMAAAB with id 98670702
Chrome Headless 97.0.4692.71 (Linux x86_64): Executed 3 of 3 SUCCESS (0.117 secs / 0.1 secs)
TOTAL: 3 SUCCESS
Enter fullscreen mode Exit fullscreen mode

4. Run the application with the command below. Access the URL http://localhost:4200/ and check if the application is working.

npm start

> angular-github-actions-amazon-s3@1.0.0 start
> ng serve

✔ Browser application bundle generation complete.

Initial Chunk Files   | Names         |  Raw Size
vendor.js             | vendor        |   2.00 MB |
polyfills.js          | polyfills     | 339.24 kB |
styles.css, styles.js | styles        | 213.01 kB |
main.js               | main          |  53.27 kB |
runtime.js            | runtime       |   6.90 kB |

                      | Initial Total |   2.60 MB

Build at: 2022-01-23T01:13:06.355Z - Hash: e7a502736b12e783 - Time: 6256ms

** Angular Live Development Server is listening on localhost:4200, open your browser on http://localhost:4200/ **


✔ Compiled successfully.
Enter fullscreen mode Exit fullscreen mode

5. Build the application with the command below.

npm run build:prod

> angular-github-actions-amazon-s3@1.0.0 build:prod
> ng build --configuration production

✔ Browser application bundle generation complete.
✔ Copying assets complete.
✔ Index html generation complete.

Initial Chunk Files           | Names         |  Raw Size | Estimated Transfer Size
main.464c3a39ed8b2eb2.js      | main          | 206.10 kB |                56.11 kB
polyfills.f007c874370f7293.js | polyfills     |  36.27 kB |                11.56 kB
runtime.8db60f242f6b0a2b.js   | runtime       |   1.09 kB |               603 bytes
styles.ef46db3751d8e999.css   | styles        |   0 bytes |                       -

                              | Initial Total | 243.46 kB |                68.25 kB

Build at: 2022-01-23T01:14:01.354Z - Hash: cab5f3f1681e58fd - Time: 11304ms
Enter fullscreen mode Exit fullscreen mode

6. Let's create and configure the file with the GitHub Actions flow. Create the .github/workflows/gh-pages.yml file.

mkdir -p .github/workflows
touch .github/workflows/gh-pages.yml
Enter fullscreen mode Exit fullscreen mode

7. Configure the .github/workflows/gh-pages.yml file with the content below.

name: GitHub Pages

on:
  push:
    branches:
    - main

jobs:
  deploy:
    runs-on: ubuntu-latest
    steps:
    - name: Configure AWS Credentials
      uses: aws-actions/configure-aws-credentials@v1
      with:
        aws-access-key-id: ${{ secrets.AWS_ACCESS_KEY_ID }}
        aws-secret-access-key: ${{ secrets.AWS_SECRET_ACCESS_KEY }}
        aws-region: sa-east-1

    - name: Checkout
      uses: actions/checkout@v2

    - name: Setup Node.js
      uses: actions/setup-node@v2
      with:
        node-version: 14

    - name: Install dependencies
      run: npm install

    - name: Run tests
      run: npm run test:headless

    - name: Build
      run: npm run build:prod

    - name: Deploy
      if: success()
      run: aws s3 sync ./dist/angular-github-actions-amazon-s3 s3://angular-github-actions-amazon-s3
Enter fullscreen mode Exit fullscreen mode

Notes:

  • The aws-access-key-id and aws-secret-access-key settings were done in the GitHub repository.
  • The aws-region setting is the bucket region.
  • The ./dist/angular-github-actions-amazon-s3 setting is the application build folder.
  • The s3://angular-github-actions-amazon-s3 setting is the bucket name.

8. Syncronize the application on the GitHub repository that was created.

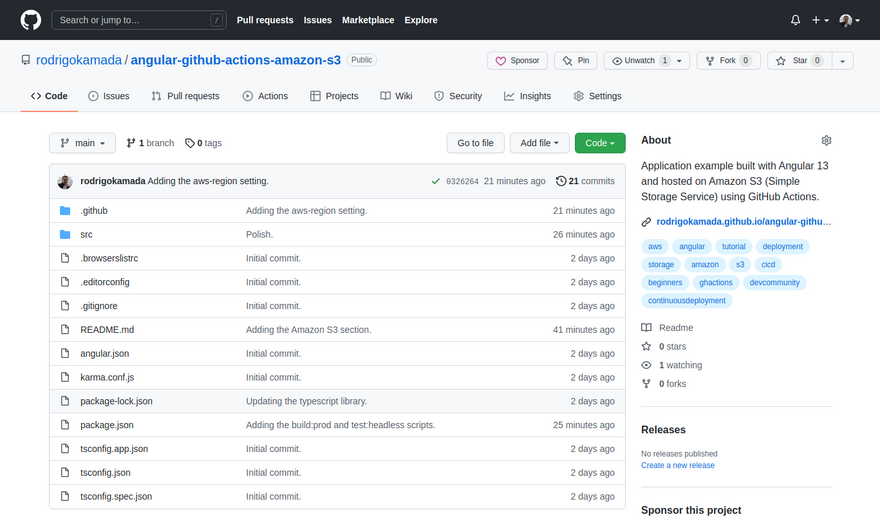

GitHub - Repository

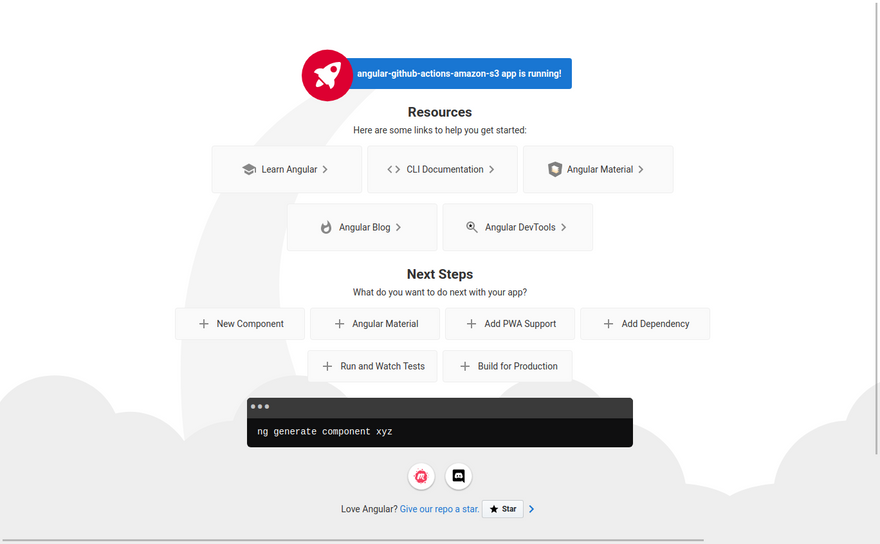

9. Ready! After synchronizing the application on the GitHub repository, the GitHub Actions build the application and synchronize with Amazon S3 bucket. Access the URL http://angular-github-actions-amazon-s3.s3-website-sa-east-1.amazonaws.com/ and check if the application is working. Replace the URL values with your bucket name and region.

Angular GitHub Actions Amazon S3

Validate the run of the GitHub Actions flow

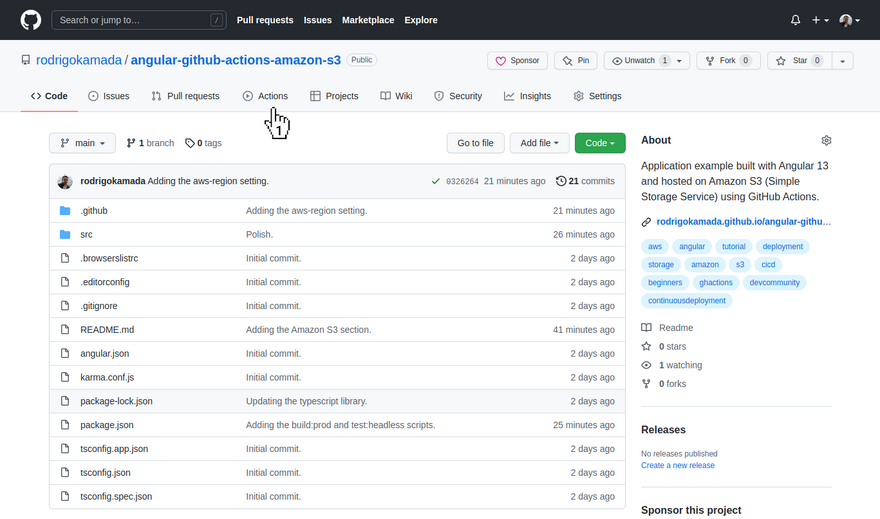

1. Let's validate the run of the GitHub Actions flow. Access the repository https://github.com/rodrigokamada/angular-github-actions-amazon-s3 created and click on the link Actions.

GitHub Actions - Repository

2. Click on the flow runned.

GitHub Actions - Workflows

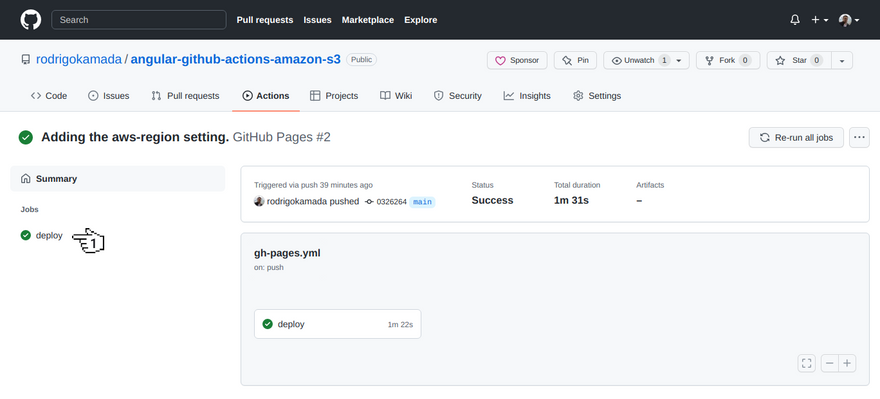

3. Click on the job deploy.

GitHub Actions - Jobs

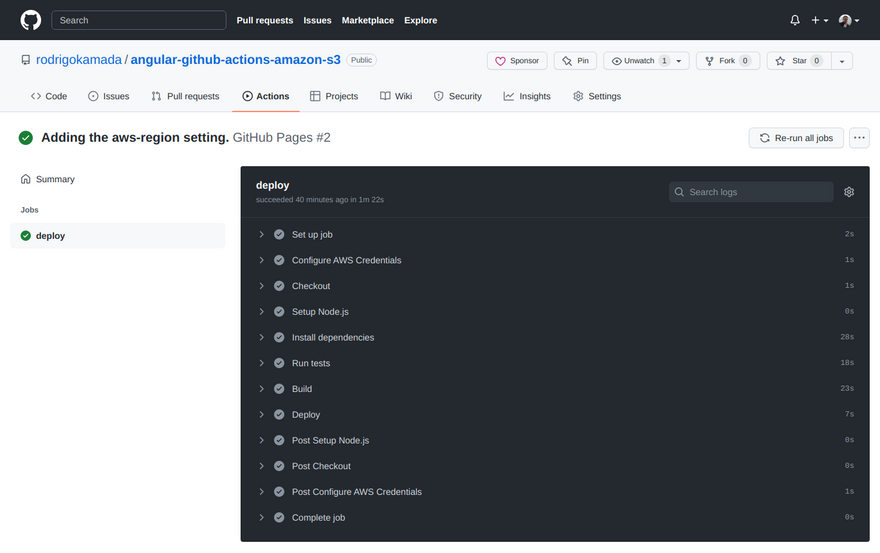

4. Click on each step to validate the run.

GitHub Actions - Steps

5. Ready! We validate the run of the GitHub Actions flow.

The application repository is available at https://github.com/rodrigokamada/angular-github-actions-amazon-s3.

This tutorial was posted on my blog in portuguese.
