How to setup an email alert for high Active Message count for Azure Service Bus Queue

Image for post

Photo by Hugo Jehanne on Unsplash

Hello Friends,

  • Do you use Azure Service Bus Queues?

  • Have you ever run into a situation (or a little concerned of running into) where the number of messages in the queue went exceptionally high (or more than usually anticipated) and you only realized when customers complained about the delay in their processing?

If yes, then this article might help you. Here we are going to see how we could be proactive and set up alerts on Azure Service Bus queues to be triggered when the active message count goes more than expected.

This post assumes that you have an Azure service bus namespace setup with a Queue. Here is the official documentation for instructions.

I am going to use a service bus namespace AlertDemoServiceBus which has a queue named Orders.

Lets start!

Login to you account and navigate to the service bus namespace.

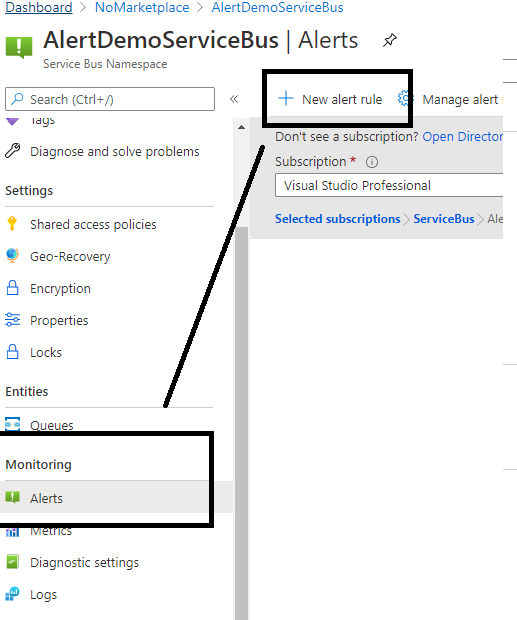

Click on Alerts and New Alert Rule

Image for post

Image for post

This should open a new alert rule page. Here, we select the resource, which is our service bus namespace. If have only 1 service queue, then it should auto-populate.

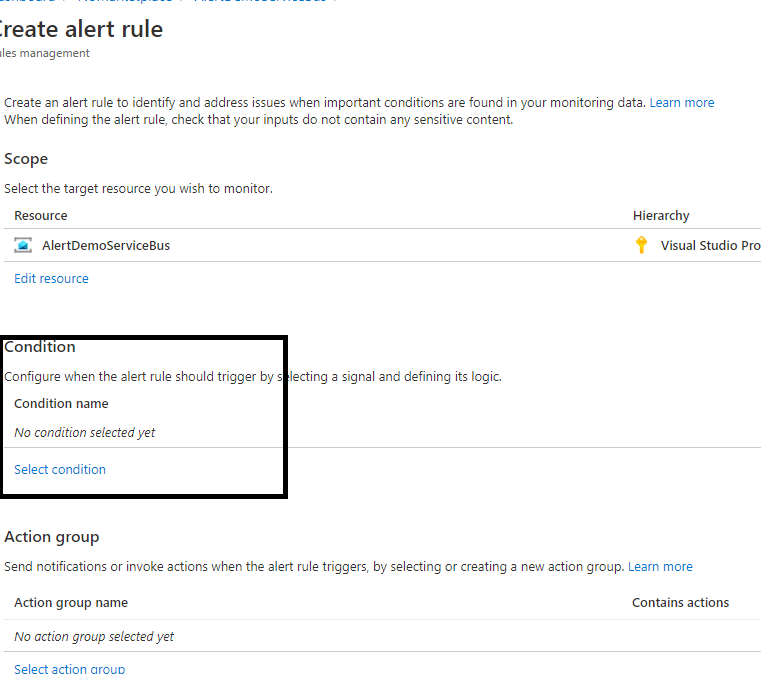

Now, we have to set the condition for alert rule.

Image for post

Image for post

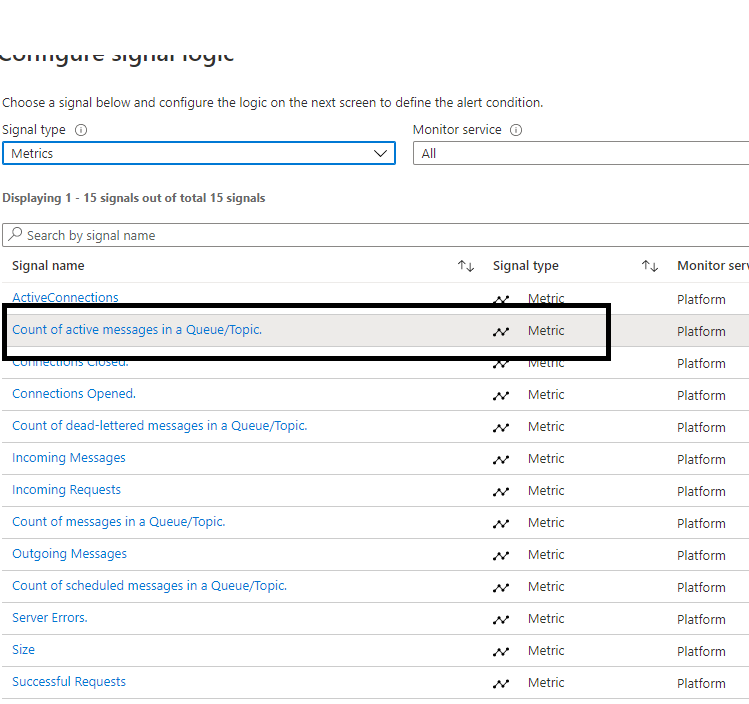

On click of select condition link, we get a new window in which we can setup the logic. We can setup alert on various signals as shown below but here we will using β€œCount of active messages in a Queue/Topics”

Image for post

Image for post

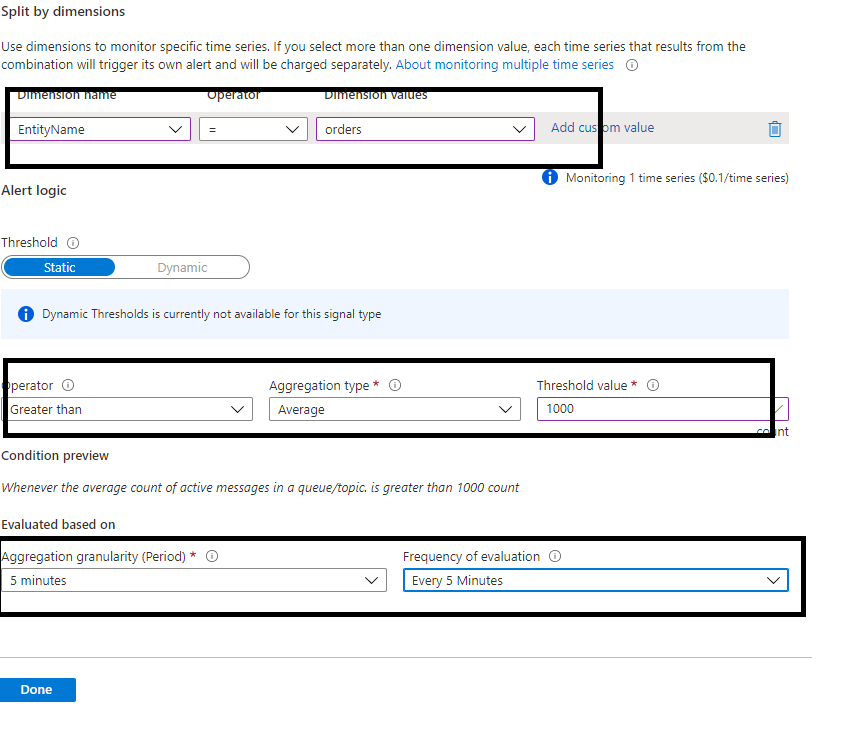

Once we select the base signal, on the next page we can configure the logic as below.

Image for post

Image for post

Here I am setting alert on Orders Entity with threshold as 1000 active message and the condition will be checked every 5 mins.

Next would be the part where we setup actual Alert email when the condition is met. We have to create an Alert Group to achieve that. This takes us through a wizard.

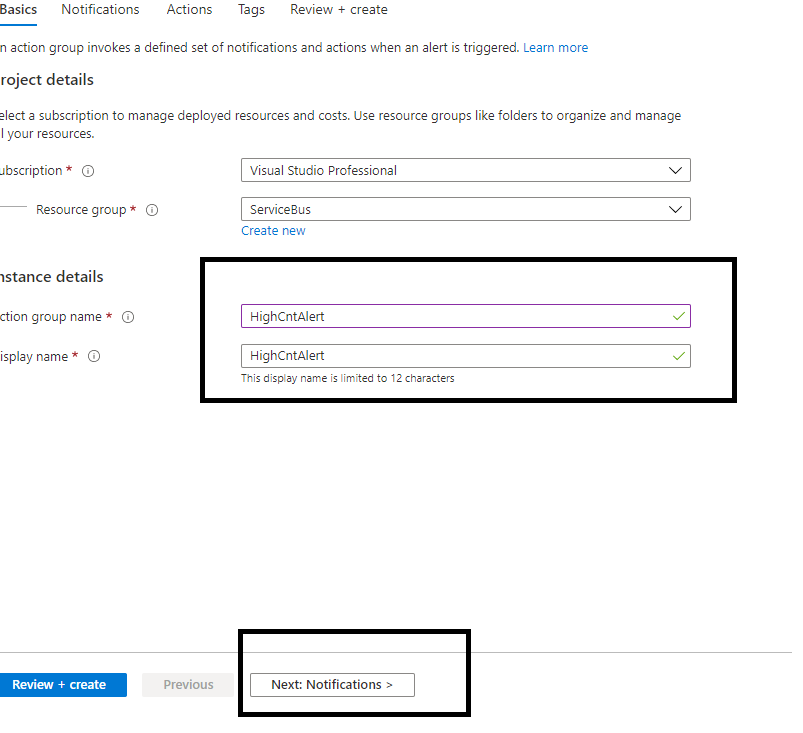

First step would be to name it. I am creating an alert with a name HighCntAlert

Image for post

Image for post

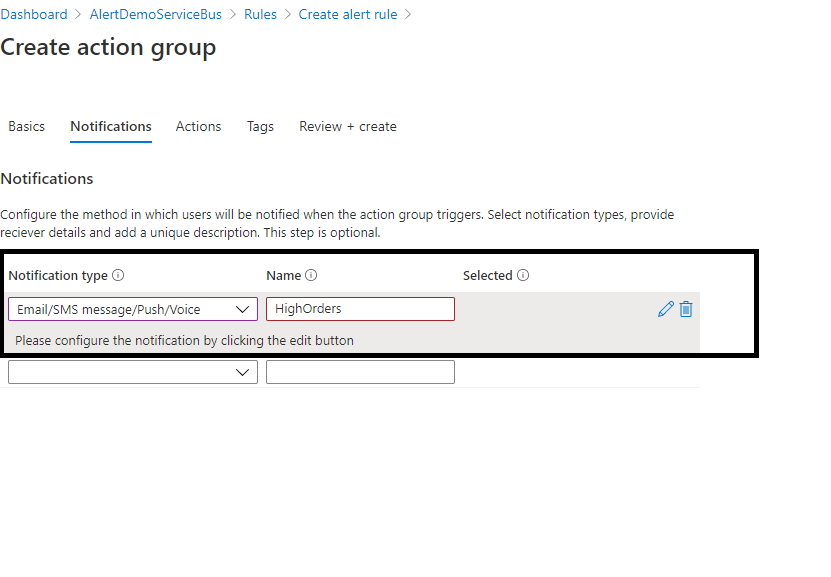

The next part would be setup notification.

Lets give it a name.

Image for post

Image for post

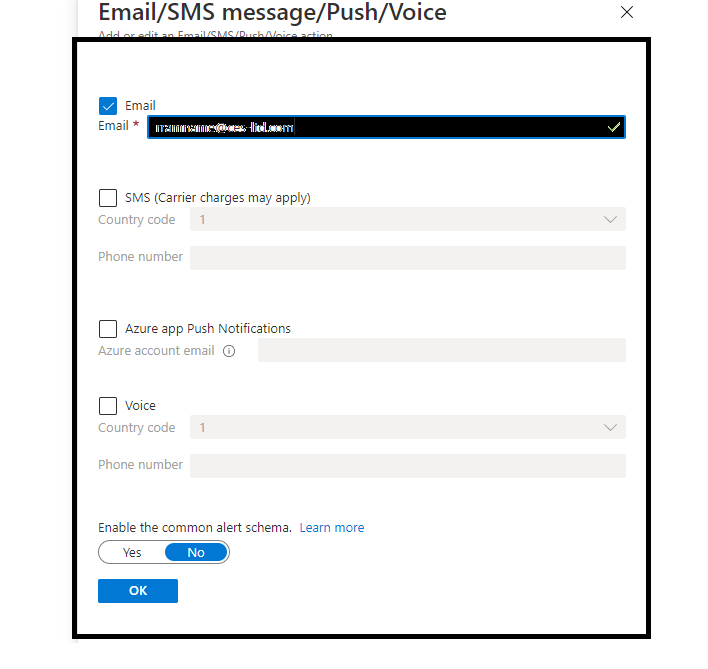

And provide an email address to receive an alert

Image for post

Image for post

As we can notice here, we can also request for an SMS or voice message but it attracts extra charges.

Once its setup, we can click review and create. It should create an alert group with email as a notification option for us.

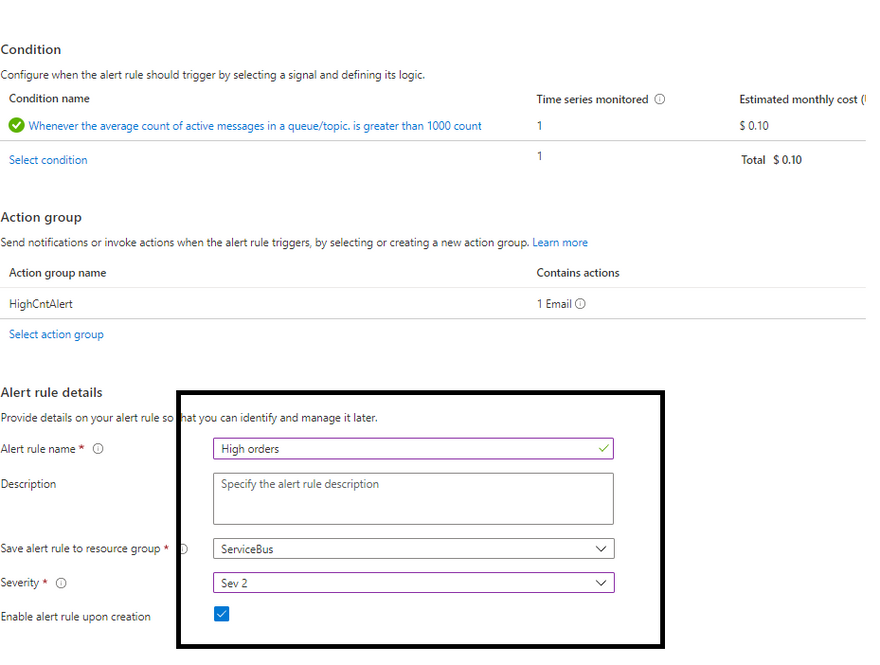

The as below, give it a name and severity Level and enable it upon creation to start receiving alerts immediately .

Image for post

Image for post

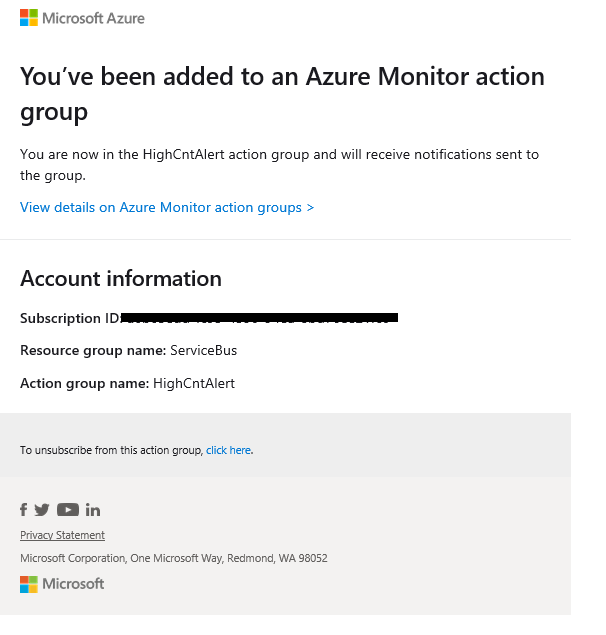

This should trigger a confirmation email.

Image for post

Image for post

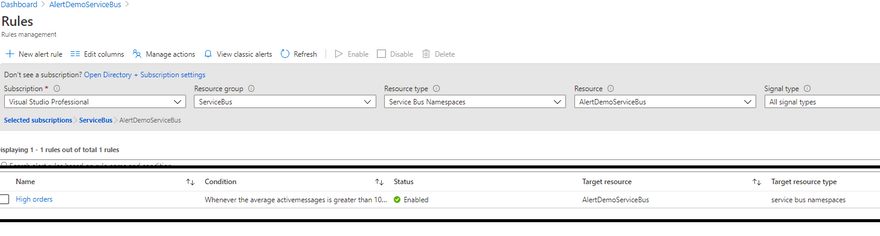

Once its ready, we should be able to see it under β€œManage Alert Rules” menu.

Image for post

Image for post

We are all setup!!

Now, when the queue count goes to 1000 as per our condition, Azure will create an alert. We can see this alert by navigating to β€œAlert” menu on the namespace.

We have to wait for 5 mins for azure to trigger the condition as we had configured in our rule above

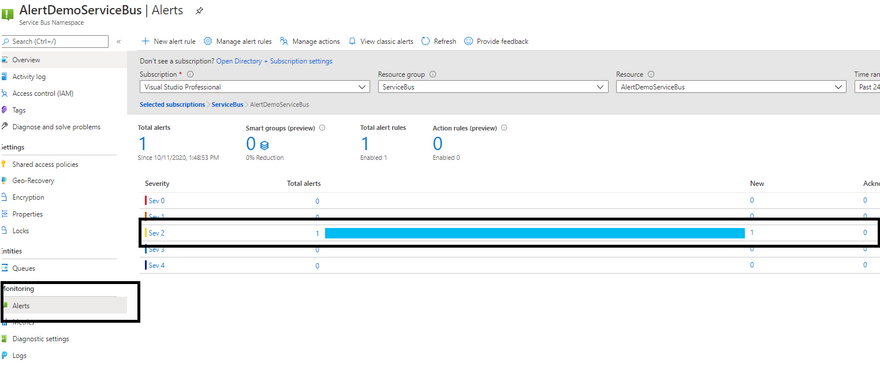

After 5 mins, we can see an alert for Sev 2 raised for our queue in Alerts section of our service bus namespace.

Image for post

Image for post

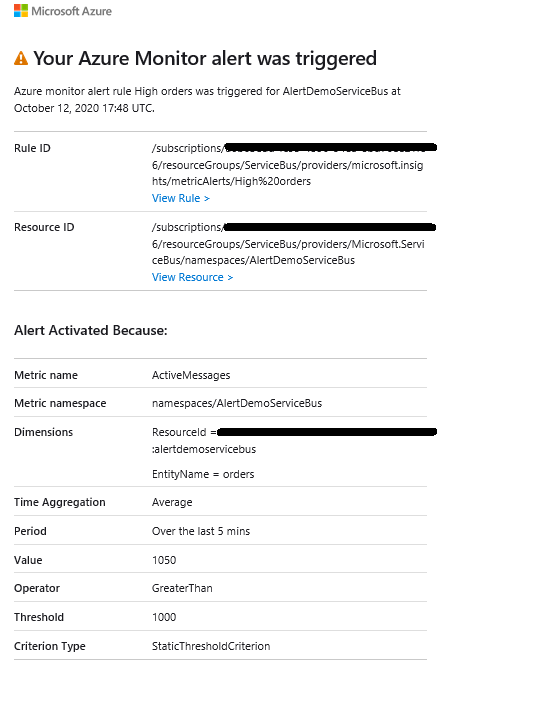

And an email sent to our registered email address from azure-noreply@microsoft.com

Image for post

Image for post

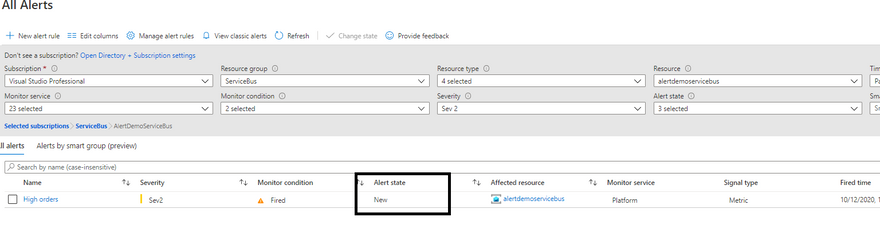

In the details, notice the alert state.

Image for post

Image for post

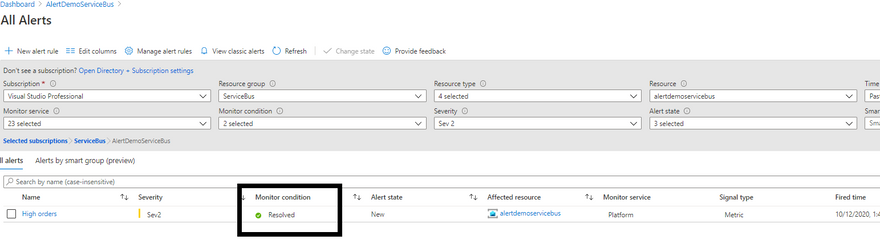

Once the queue count goes down, the state automatically changes to Resolved

Image for post

Image for post

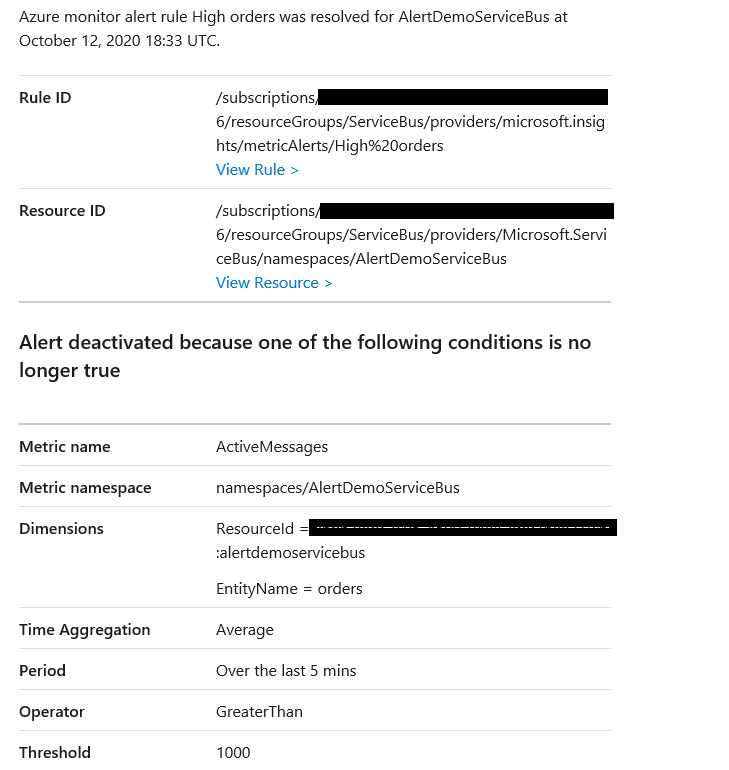

and we also get an email notification about this progress.

Image for post

Image for post

Thank you!!
