HarmonyOS Flutter in action: 20 - Flutter integrates AutoNavi maps and renders them on the same

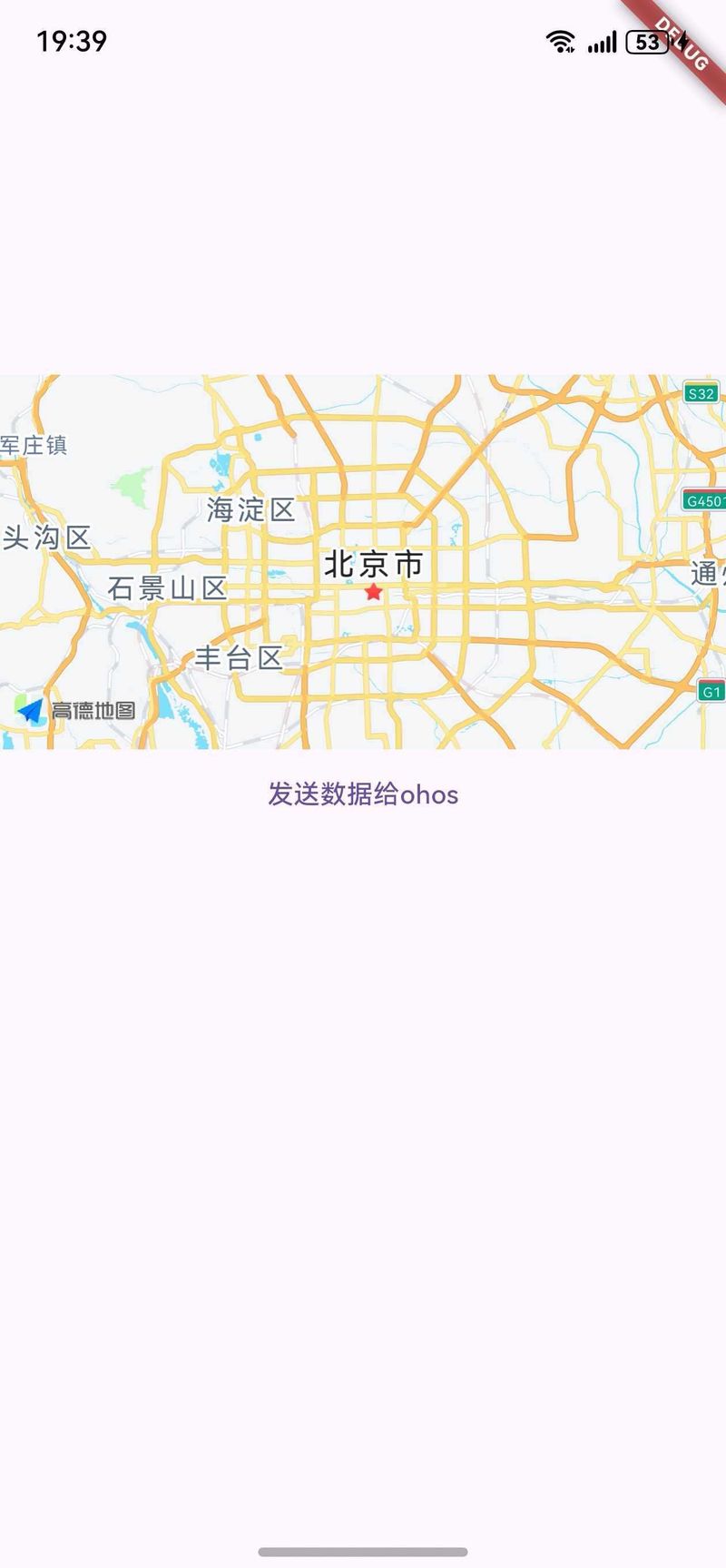

This article takes same-layer rendering as an example to introduce how to integrate AutoNavi maps

See Flutter Harmony Edition Demo for the full code.

Overview

Dart side

The core code is as follows, and the native view is hosted through OhosView

OhosView(
      viewType: 'com.shaohushuo.app/customView',
      onPlatformViewCreated: _onPlatformViewCreated,
      creationParams: const <String, dynamic>{'initParams': 'hello world'},
      creationParamsCodec: const StandardMessageCodec(),
    )

where viewType is the name of the custom ohosView, onPlatformViewCreated is the callback after creation, creationParams is the parameter passed in during creation, and creationParamsCodec is the parameter encoding format.

ArkTS side

In this case, we follow the example in "How to Use PlatformView", first of all, we need to create a view that displays the AutoNavi map, and its core code is as follows:

Full file AmapWidgetFactory.ets


MapsInitializer.setApiKey("e4147e927a1f63a0acff45cecf9419b5");
MapViewManager.getInstance().registerMapViewCreatedCallback((mapview?: MapView, mapViewName?: string) => {
  if (!mapview) {
    return;
  }
  let mapView = mapview;
  mapView.onCreate();
  mapView.getMapAsync((map) => {
    let aMap: AMap = map;
  })
})

@Component
struct ButtonComponent {
  @Prop params: Params
  customView: AmapWidgetView = this.params.platformView as AmapWidgetView

  build() {
    Row() {
      MapViewComponent().width('100%').height('100%')
    }
  }
}

Next create one AmapWidgetFactory.ets

export class AmapWidgetFactory extends PlatformViewFactory {
  message: BinaryMessenger;

  constructor(message: BinaryMessenger, createArgsCodes: MessageCodec<Object>) {
    super(createArgsCodes);
    this.message = message;
  }

  public create(context: common.Context, viewId: number, args: Object): PlatformView {
    return new AmapWidgetView(context, viewId, args, this.message);
  }
}

Eventually one needs to be created AmapWidgetPlugin.ets

export class AmapWidgetPlugin implements FlutterPlugin {
  getUniqueClassName(): string {
    return 'AmapWidgetPlugin';
  }

  onAttachedToEngine(binding: FlutterPluginBinding): void {
    binding.getPlatformViewRegistry()?.
    registerViewFactory('com.shaohushuo.app/customView', new AmapWidgetFactory(binding.getBinaryMessenger(), StandardMessageCodec.INSTANCE));
  }

  onDetachedFromEngine(binding: FlutterPluginBinding): void {}
}

Once the plugin is created, remember to register the plugin in EntryAbility

 this.addPlugin(new AmapWidgetPlugin())

It should be noted that the view ID must be consistent on both sides, such as 'com.shaohushuo.app/customView', otherwise it will not be displayed normally
