Redesigning Bootstrap CSS Components

One of the best things about Bootstrap CSS is that it comes with component examples in its documentation.

But these examples have flaws. Design flaws.

Luckily, they can easily be fixed with a little design know how and out of the box Bootstrap classes.

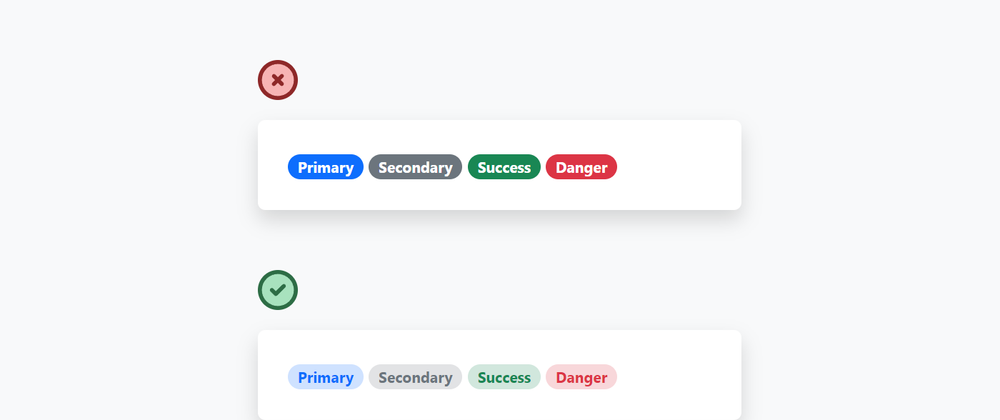

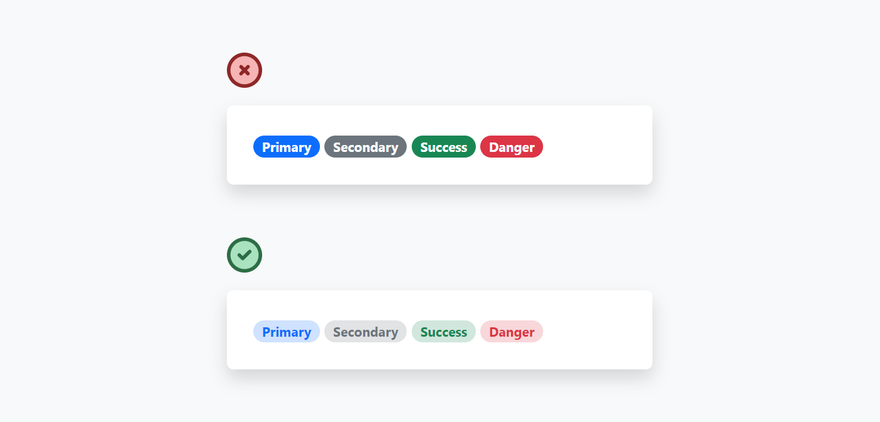

1) Rework pills for a warmer, softer feel

Bootstrap pill colors are harsh. You can use the --bs-bg-opacity CSS variable that comes with Bootstrap. This will soften the background color to create better contrast.

Redesign Bootstrap Components

<span class="badge rounded-pill text-primary bg-primary" style="--bs-bg-opacity: .20;">Primary</span>
<span class="badge rounded-pill text-secondary bg-secondary" style="--bs-bg-opacity: .20;">Secondary</span>
<span class="badge rounded-pill text-success bg-success" style="--bs-bg-opacity: .20;">Success</span>
<span class="badge rounded-pill text-danger bg-danger" style="--bs-bg-opacity: .20;">Danger</span>
Enter fullscreen mode Exit fullscreen mode

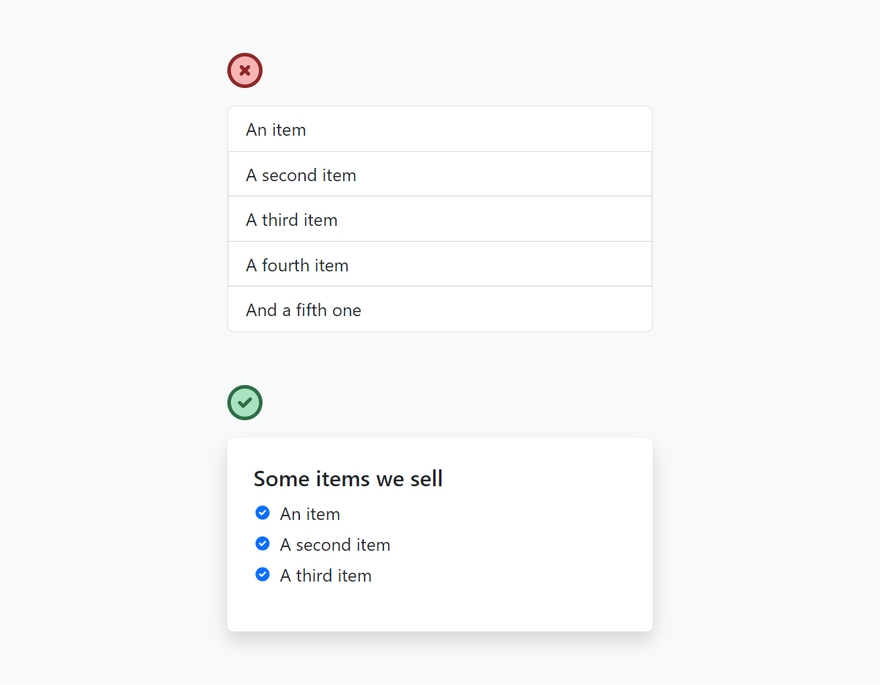

2) Throw list groups out the window

They are ugggggly. Use standard HTML lists. You can even add SVGs instead of standard list bullets to draw more attention.

Bootstrap CSS list styles

<div class="card border-0 shadow p-2">
    <div class="card-body">
        <h3 class="fs-5">Some items we sell</h3>
        <ul class="" style="list-style: none; list-style-position: outside; padding-left: 0px;">
            <li class="d-flex align-items-center mb-1">
                <svg xmlns="http://www.w3.org/2000/svg" class="me-2 text-primary" height="16" width="16" viewBox="0 0 20 20" fill="currentColor">
                    <path fill-rule="evenodd" d="M10 18a8 8 0 100-16 8 8 0 000 16zm3.707-9.293a1 1 0 00-1.414-1.414L9 10.586 7.707 9.293a1 1 0 00-1.414 1.414l2 2a1 1 0 001.414 0l4-4z" clip-rule="evenodd" />
                </svg>
                An item
            </li>
            <li class="d-flex align-items-center mb-1">
                <svg xmlns="http://www.w3.org/2000/svg" class="me-2 text-primary" height="16" width="16" viewBox="0 0 20 20" fill="currentColor">
                    <path fill-rule="evenodd" d="M10 18a8 8 0 100-16 8 8 0 000 16zm3.707-9.293a1 1 0 00-1.414-1.414L9 10.586 7.707 9.293a1 1 0 00-1.414 1.414l2 2a1 1 0 001.414 0l4-4z" clip-rule="evenodd" />
                </svg>
                A second item
            </li>
            <li class="d-flex align-items-center mb-1">
                <svg xmlns="http://www.w3.org/2000/svg" class="me-2 text-primary" height="16" width="16" viewBox="0 0 20 20" fill="currentColor">
                    <path fill-rule="evenodd" d="M10 18a8 8 0 100-16 8 8 0 000 16zm3.707-9.293a1 1 0 00-1.414-1.414L9 10.586 7.707 9.293a1 1 0 00-1.414 1.414l2 2a1 1 0 001.414 0l4-4z" clip-rule="evenodd" />
                </svg>
                A third item
            </li>
        </ul>
    </div>
</div>
Enter fullscreen mode Exit fullscreen mode

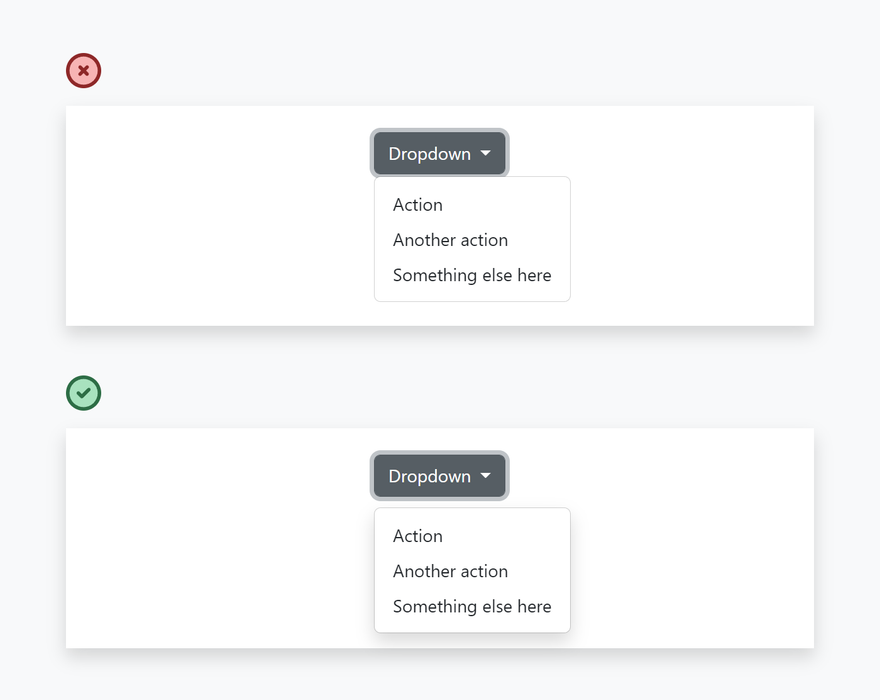

3) Give dropdowns a shadow and some room to breathe.

Add shadows with the shadow class to dropdowns. This gives it depth and the appearance that it's closer to the user. Add a small margin with mt-2 to keep the list from overlapping the button.

Bootstrap CSS dropdown redesign

<div class="bg-white p-4 shadow d-flex justify-content-center" style="height: 200px;">
    <div class="dropdown">
        <button class="btn btn-secondary dropdown-toggle" type="button" id="dropdownMenuButton1" data-bs-toggle="dropdown" aria-expanded="false">
          Dropdown
        </button>
        <ul class="dropdown-menu shadow mt-2" aria-labelledby="dropdownMenuButton1">
          <li><a class="dropdown-item" href="#">Action</a></li>
          <li><a class="dropdown-item" href="#">Another action</a></li>
          <li><a class="dropdown-item" href="#">Something else here</a></li>
        </ul>
    </div>
</div>
Enter fullscreen mode Exit fullscreen mode

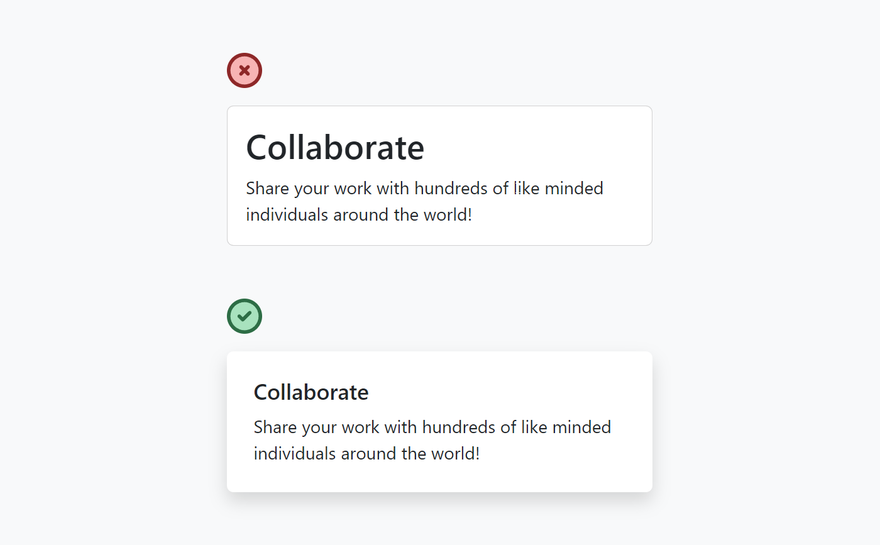

4) Use shadows and extra padding on cards

Card borders often feel clunky. Shadows emphasize elements and give the page depth. Use the shadow class to add a shadow to your class and increase the padding with the p-2 class to give it some more internal spacing.

Bootstrap CSS redesign cards

<div class="card border-0 shadow p-2">
    <div class="card-body">
        <h5 class="card-title fs-5">Collaborate</h5>
        <p class="card-text">
            Share your work with hundreds of like minded individuals around the world!
        </p>
    </div>
</div>
Enter fullscreen mode Exit fullscreen mode

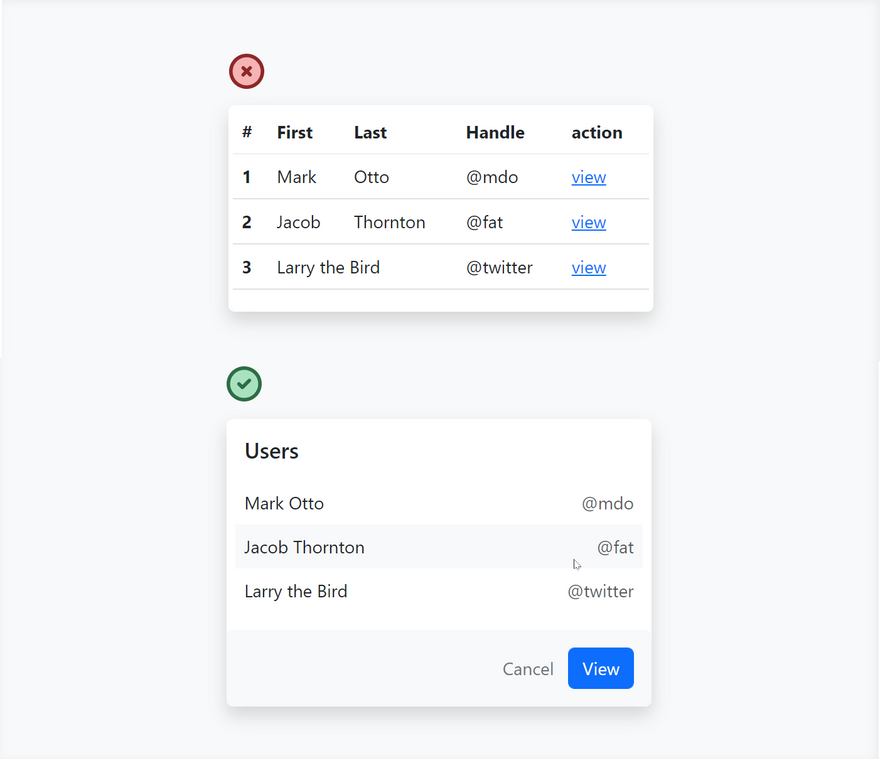

5) HTML tables don't have to be boring

Tables don't have to be a direct 1-1 representation of your database. If it makes sense, combine columns and hide headers. This makes it feel less like a database and more like a UI component.

Bootstrap CSS tables

<div class="border-0 shadow bg-white rounded">
    <h3 class="fs-5 px-3 pt-3">Users</h3>
    <div class="px-2 pt-2">
        <table class="table table-borderless fs-6">
            <tbody>
                <tr>
                    <td>Mark Otto</td>
                    <td class="text-end text-muted">@mdo</td>
                </tr>
                <tr class="bg-light rounded-4">
                    <td>Jacob Thornton</td>
                    <td class="text-end text-muted">@fat</td>
                </tr>
                <tr>
                    <td>Larry the Bird</td>
                    <td class="text-end text-muted">@twitter</td>
                </tr>
            </tbody>
        </table>
    </div>
    <div class="p-3 bg-light rounded d-flex justify-content-end">
        <buttons class="btn btn-link text-secondary text-decoration-none">Cancel</buttons>
        <buttons class="btn btn-primary">View</buttons>
    </div>
</div>
Enter fullscreen mode Exit fullscreen mode

More Bootstrap Tips??

If you enjoyed this, consider checking out my new project - Better Bootstrap

There you will find a free book containing 15 Bootstrap design tips. The full book will be coming out later this year.
