Practicing CSS Animations, @keyframes & Git Topic Branches

cover image by yours truly πŸ˜‰

✨ Hello! ✨

I am challenging myself to post about my projects and learning, so here is a project I am working on! Thank you for reading πŸ’›

πŸ’» The Project

I am currently working on coding a responsive portfolio website for a fictional photographer. I took a design I created from a previously completed Skillcrush class and decided to turn it into a functional website to practice my HTML, CSS, and flexbox skills.

❓ The Problem

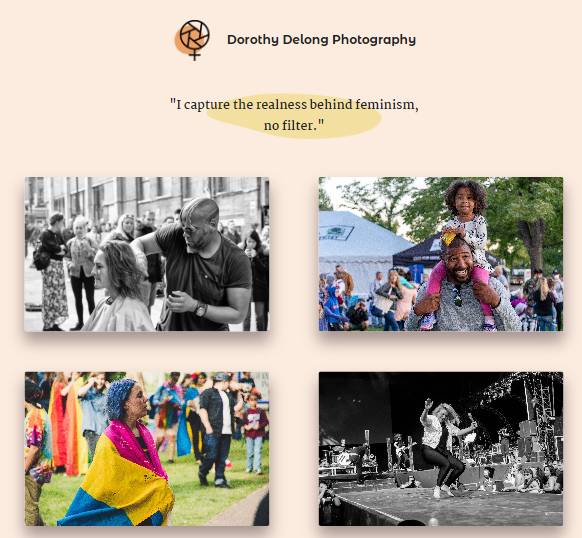

I have coded everything up, using media queries and flexbox to ensure responsiveness across screens, but the image layout for the tablet and desktop versions is... boring (refer to the image below).

An screenshot of a desktop website with an uninspiring image layout

⭐ The Goal

I want to better showcase the images for the portfolio website by applying CSS animations. In addition to learning more about CSS animation properties, I will also be creating a new topic branch in GitHub, which will allow me to practice branching and merging in the command line. This is a valuable skill when working with a team!

πŸ“ The Process

1. Creating a new branch

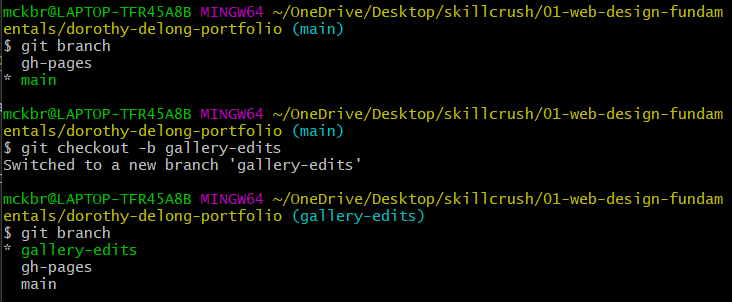

I didn't want to add errors to my existing code, so I created a new branch by typing git checkout -b gallery-edits in the command line.

A screenshot of creating a new branch in the command line

2. Applying CSS animations

For the HTML, I first wrapped my <img> tags in a <figure> tag. I then wrapped it in a <div> tag with an id of "slider."

<div id="slider">
  <figure>
    <img src="" alt="">
    <img src="" alt="">
    <img src="" alt="">
    <img src="" alt="">
    <img src="" alt="">
  </figure>
</div>
Enter fullscreen mode Exit fullscreen mode

In my CSS file, I applied styles to the #slider, #slider figure, and #slider figure img elements.

#slider {
  overflow: hidden;
}
#slider figure {
  position: relative;
  width: 500%;
  margin: 0;
  left: 0;
  animation: 20s slider infinite;
}
#slider figure img {
  width: 20%;
  float: left;
}
Enter fullscreen mode Exit fullscreen mode

I used overflow: hidden to ensure that the images would stay within the #slider container.

Applying width: 500% makes the figure container take up 500% of the screen. Then, applying width: 20% to each img means we will now see only 20% of the entire figure container on the screen (or one image, as there are five images total).

πŸͺ„ Now it's animation time! I applied animation: 20s slider infinite to the figure container. This mean that the animation will last 20 seconds, we will name it "slider" (this will be referred to in the keyframes later), and it will never stop.

3. Using @keyframes

I'll admit, this part took me a little time to fully understand, but it is a pretty fun and versatile tool once you get it! Luckily, the w3newbie tutorial I was following made it very clear which percentages to use, so I just needed to do some extra research to understand WHY these percentages were used.

@keyframes slider {
  0% {
    left: 0;
  }
  20% {
    left: 0;
  }
  25% {
    left: -100%;
  }
  45% {
    left: -100%;
  }
  50% {
    left: -200%;
  }
  70% {
    left: -200%;
  }
  75% {
    left: -300%;
  }
  95% {
    left: -300%;
  }
  100% {
    left: -400%;
  }
}
Enter fullscreen mode Exit fullscreen mode

@keyframes slider is now referencing back to the name we gave to the animation property earlier. Each percentage in the @keyframes at-rule indicates how the animated element, in this case, the group of images, should render at that SPECIFIC point in the animation sequence.

After playing around with it, I figured out that the 20%, 45%, 70%, and 95% properties create a delay so each image stays still a little longer. The 100% property is necessary in order to create a smooth transition back to the beginning of the animation. I also added another <div> for the titles of each image and applied the same CSS animation:

<div id="image-titles">
  <div class="titles">
    <h3><span class="title">Haircut</span>, NYC 2018</h3>
    <h3><span class="title">Father</span>, NYC 2017</h3>
    <h3><span class="title">Moment</span>, Houston 2016</h3>
    <h3><span class="title">Flag</span>, Washington DC 2017</h3>
    <h3><span class="title">Haircut</span>, NYC 2018</h3>
  </div>
</div>
Enter fullscreen mode Exit fullscreen mode

4. Resolving conflicts and MERGING, bebe!!!

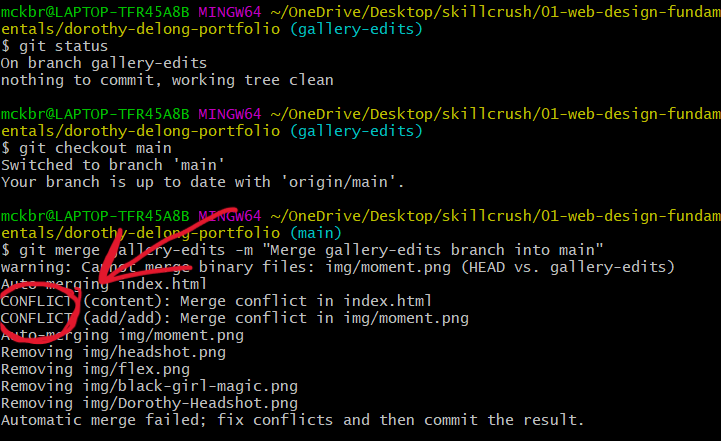

After adding (git add .) and committing (git commit -m "message") my final changes to the gallery-edits branch, I was finally ready to merge the gallery-edits branch with the main branch. Upon doing so in the command line, you can see that I received a merge conflict error:

A screenshot of merging a branch in the command line and receiving a merge conflict error

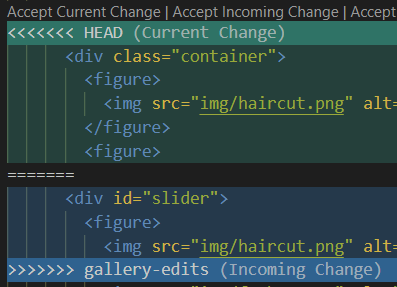

When I opened my code in VS Code, I saw conflict markers that Git placed around the conflicting code. The <<<<<<< HEAD marker indicates the branch I am currently on (the main branch), and the >>>>>>> gallery-edits marker indicates the conflicting commit coming from the topic branch.

A screenshot of conflict markers around my conflicting code in the VS Code editor

I resolved the conflicts, then added and committed the changes once more. Then, I deleted the gallery-edits branch using git branch -d gallery-edits, as I no longer needed the branch. After that, using git push origin main, I pushed my changes to the main branch.

You can view the final website here!

πŸ’­ Final Thoughts

Honestly, I could have spent A LOT more time on this, even though I started coding the website three weeks ago (I have been doing other things too, I promise!). I am not satisfied with the desktop layout - I might change it later to make both the gallery and the about section side by side, so folks viewing it on a desktop can see it all without scrolling. But I really need to move on, so for now, that's all!

Thank you to anyone who has taken the time to read all of this! Hopefully, writing about my process like this will not only show my learning progress, but will allow me to improve upon my technical writing skills. Bye!

πŸ–±οΈResources I used

Past lessons from Skillcrush.
This VERY helpful tutorial from w3newbie.
This MDN Web Docs article on CSS animations and keyframes.
