HarmonyOS Flutter in action: 04 - uses DevTools to debug webviews

Integrating Webview in Harmony Flutter Development describes how to integrate Webview in Flutter. This article describes how to debug a webview.

Configure the webview

CustomView.ets file, configure the allowed debugging at lifecycle aboutToAppear:

  aboutToAppear() {
    webview.WebviewController.setWebDebuggingAccess(true);
  }

Locate the port of devtools

Run the app, use the hdc command to connect the device, and find the relevant port

# Connect the device
hdc shell

# Locate the relevant process
cat /proc/net/unix | grep devtools

#0: 00000002 0 10000 1 1 2318187 @webview_devtools_remote_43406
#0: 00000002 0 10000 1 1 20785 @webview_devtools_remote_6312

As you can see above, webview_devtools_remote_43406 is the page we want to debug

Enable port forwarding

Forward the ports in the device to the development computer

hdc fport tcp:9222 localabstract:webview_devtools_remote_43406

# Forwardport result:OK

Find the webview in Chrome and start debugging

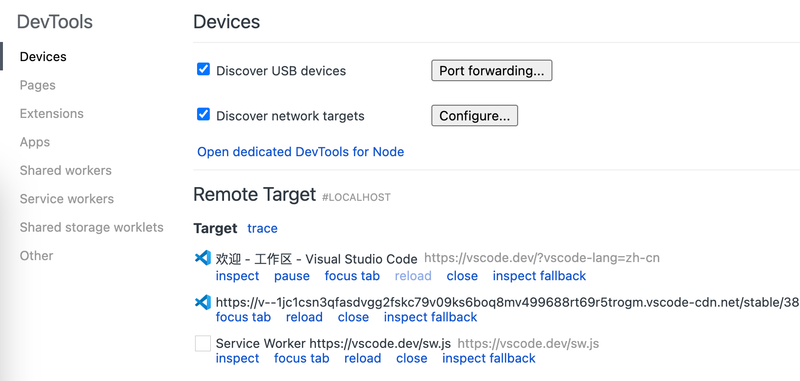

Open the 'chrome://inspect/#devices' page in Chrome and observe the relevant page at RemoteTarget

Select the page to be scheduled, click inspect, and the DevTools window will pop up to open page scheduling

Miscellaneous

If you want to inject js code into a webview, you can inject a JavaScript script using the 'runJavaScript' method in the web component configuration, such as

    Web({src: 'https://baidu.com', controller: this.webviewController})
      .domStorageAccess(true)
      .fileAccess(true)
      .mixedMode(MixedMode.All)
      .databaseAccess(true)
      .javaScriptAccess(true)
      .onPageEnd(() => {
          this.webviewController.runJavaScript("document.querySelector('meta[http-equiv=\"Content-Security-Policy\"]').remove()");
      })
