Part 3: Testing SafeLine WAF, Docker Installation & Troubleshooting

Welcome to the final part of our SafeLine WAF series!

So far, you have set up SafeLine and configured it for your environment. Now, itโ€™s time to test your protection, finalize your Docker installation if necessary, and troubleshoot any issues that may arise. This will help you maintain a robust and reliable WAF deployment.

Image description

๐Ÿ” Test Protection

You can test the protection effectiveness either manually or automatically.

Confirm Website Accessibility

Access your website using the parameters configured in SafeLine WAF:

  • Open your browser and visit: http://<IP or domain>:<port>/
  • The default protocol is HTTP; check the SSL option to use HTTPS.
  • The hostname can be either the SafeLine IP or your website domain (make sure the domain resolves to SafeLine).
  • The port is the one you configured in SafeLine for the site.

If your website is not accessible, please refer to the Configuration Issues section.

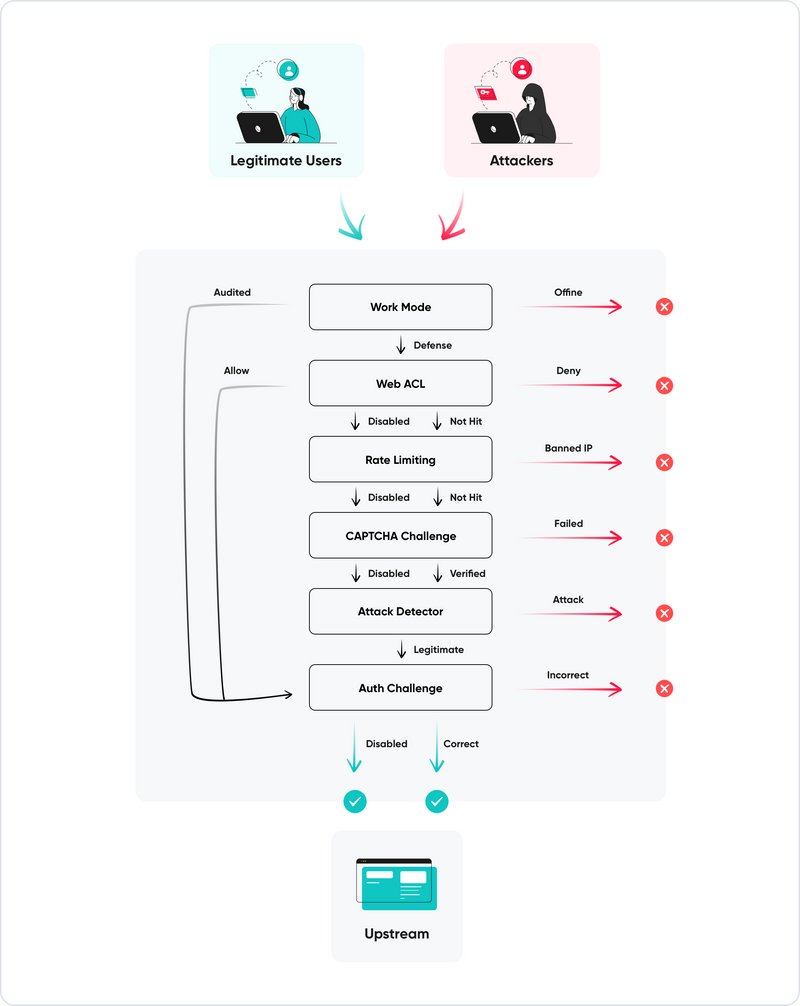

Overall Monitoring Flow Reference:

Image description

Manual Attack Simulation

Try these URLs to simulate attacks and confirm SafeLine blocks them:

  • SQL Injection: http://<IP or domain>:<port>/?id=1%20AND%201=1
  • XSS Attack: http://<IP or domain>:<port>/?html=<script>alert(1)</script>

If SafeLine blocks these, youโ€™ll see the attack prevented in your browser and logged in the dashboard. โœ…

Image description


๐Ÿณ Docker Installation on CentOS

Update yum packages

sudo yum update
Enter fullscreen mode Exit fullscreen mode

If you get errors like โ€œCould not resolve hostโ€ or mirrorlist failures, add Alibaba Cloud repo:

curl -o /etc/yum.repos.d/CentOS-Base.repo http://mirrors.aliyun.com/repo/Centos-7.repo
Enter fullscreen mode Exit fullscreen mode

Setup Docker repository (use Alibaba Cloud repo to avoid errors)

sudo yum install -y yum-utils

sudo yum-config-manager --add-repo http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
Enter fullscreen mode Exit fullscreen mode

Install Docker engine

sudo yum -y install docker-ce docker-ce-cli containerd.io
Enter fullscreen mode Exit fullscreen mode

Start Docker service

sudo systemctl start docker
Enter fullscreen mode Exit fullscreen mode

โš ๏ธ Troubleshooting

If you get x509 certificate errors when pulling images, itโ€™s likely a system time or certificate issue.

Check your system time:

date
Enter fullscreen mode Exit fullscreen mode

If itโ€™s wrong, sync time with:

sudo yum -y install ntpdate

sudo ntpdate cn.pool.ntp.org
Enter fullscreen mode Exit fullscreen mode

Conclusion ๐ŸŽ‰

Congratulations on completing the SafeLine WAF deployment series! You have now:

  • Prepared your environment and installed SafeLine with Docker ๐Ÿ› ๏ธ
  • Explored multiple deployment scenarios and enabled advanced protection features ๐Ÿ›ก๏ธ
  • Tested your WAFโ€™s effectiveness and learned how to troubleshoot common issues ๐Ÿ”

With these skills, youโ€™re well-equipped to protect your web applications against a wide range of threats. Remember to keep your system and SafeLine updated, monitor your traffic regularly, and fine-tune your rules as needed.

Thank you for following along! If you have any questions or want to share your experience, feel free to join our community or leave a comment. ๐Ÿ’ฌ


๐Ÿค Join Our Community

For any technical support, you can post the question directly on our forum: https://safepoint.cloud/discussion (Our technicians will receive a notification and reply shortly).
Or you can also post it in our Discord community: https://discord.gg/dy3JT7dkmY (Weโ€™ll check messages there every day)
